On sale!

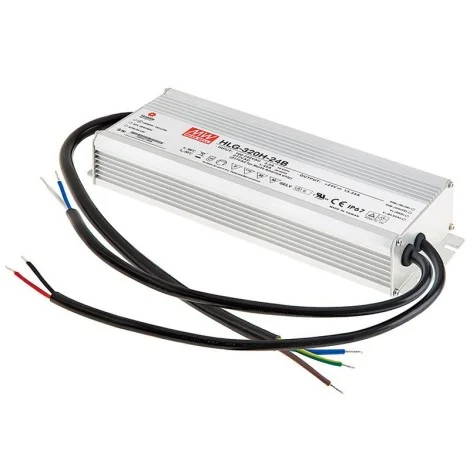

Meanwell Power Supply HLG-320H-24B 320W 24V IP67 13.34A LED Driver Dimmable

Meanwell Power Supply HLG-320H-24B 320W 24V IP67 13.34A LED Driver Dimmable

Reference HLG-320H-24B

Brand Mean Well

$109.45

The product can be ordered

More buy more save :

If you buy 5 products the price is

If you buy 10 products the price is

If you buy 15 products the price is

LED power supply unit, Mean Well model HLG-320H-24B power supply unit with power of 320.16W from 13.34A constant voltage of 24Volt. Degree of protection IP67 suitable for indoor and outdoor use. 3 in 1 light dimmer function with 1 ~ 10VDC, or 10V PWM signal.

Quantity

local_shipping Shipped in 7-21 days

You can pay in installments with PAYPAL OR SCALAPAY

Description

Product Information:

HLG-320H-24B series is a 320W LED AC/DC power supply featuring the dual operating modes, constant current mode output and constant voltage mode output with 3 in 1 light dimmer function with 1~10VDC, or 10V PWM signal. HLG-320H operates from 90-305VAC and offers models with voltage of 24V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40° ~ +90° case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

3 in 1 dimming function
Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
1 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
Dimming source current from power supply: 100Î¼A (typ.)

attach_file
Datasheet
