On sale!

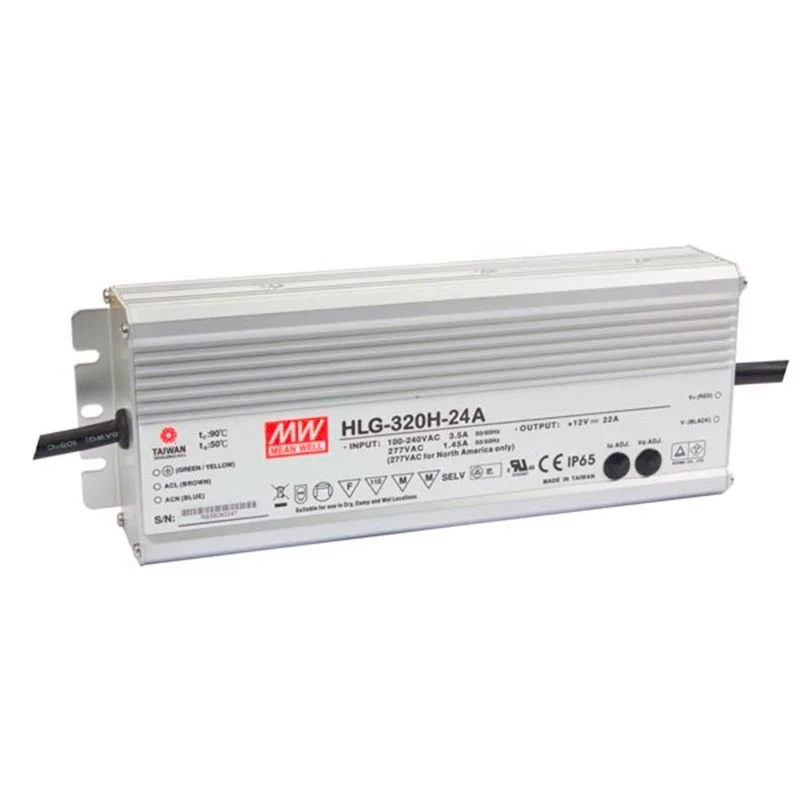

Meanwell Power Supply HLG-320H-24A 320W 24V IP65 13.34A LED

Meanwell Power Supply HLG-320H-24A 320W 24V IP65 13.34A LED Constant Voltage Driver Dimmable Built In

Reference HLG-320H-24A

Brand Mean Well

$109.44

24 / 48 hours

More buy more save :

If you buy 5 products the price is

If you buy 10 products the price is

If you buy 15 products the price is

Mean Well model HLG-320H-24A with power of 320.16W from 13.34A constant voltage of 24Volt. Degree of protection IP65 suitable for indoor and outdoor use. Dimmer function Io and Vo adjustable through built-in potentiometer.

Quantity

local_shipping Shipped in 1-2 days

check

In stock

In wharehose we have 1 Item

You can pay in installments with PAYPAL OR SCALAPAY

Description

Product Information:

The HLG-320H-24A is a 320W AC / DC LED power supply with two operating modes, constant current mode output and constant voltage mode output with built-in adjustable potentiometer. The HLG-320H operates with an input voltage of 90 - 305V AC and a nominal output voltage of 24V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40° ~ +90° case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

attach_file
Datasheet

100% original product by

Product Details

check

In stock

In wharehose we have 1 Item

Data sheet

Barcode:: 8058774344402
Reference: HLG-320H-24A
Input voltage: 100-240 V
Output voltage: 24 VOLT DC
Depth in mm: 43.8
Width in mm: 90
Length in mm: 252
Degree of protection: IP65
Material: Aluminum
Adjustable power: Dimmable
Variant: HLG-320H
Weight in Kg: 1.8
Current carrying capacity: 13A
Power output in watts: 320 w
Efficiency %: 95
Compatible current: EU-AUD-USA-UK-JAP
