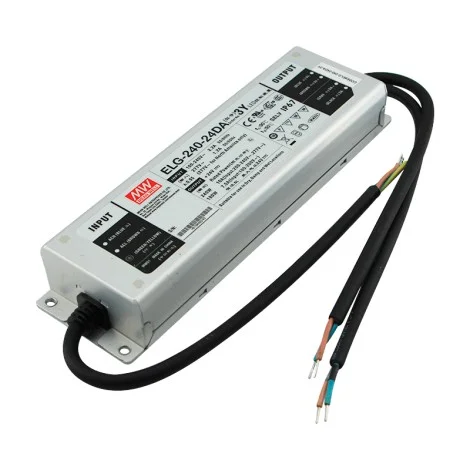

Meanwell Power Supply ELG-240-24DA-3Y 240W 24V 10A IP67 DALI
  • Meanwell Power Supply ELG-240-24DA-3Y 240W 24V 10A IP67 DALI
Meanwell Power Supply ELG-240-24DA-3Y 240W 24V 10A IP67 DALI

Meanwell Power Supply ELG-240-24DA-3Y 240W 24V 10A IP67 DALI Dimmable Constant Voltage Driver

ELG-240-24DA-3Y

$75.90
Payment in installments with Scalapay
24 / 48 hours

More buy more save :

If you buy 5 products the price is
If you buy 10 products the price is
If you buy 15 products the price is

Power supply unit, Mean Well version ELG-240-24DA-3Y with power of 240W from 10A constant voltage of 24Volt. Degree of protection IP67 suitable for indoor and outdoor use. Dimmer function for regulating the light via the DALI system.

Quantity
Shipped in 1/2 days
14 Items

You can pay in installments with PAYPAL OR SCALAPAY
Description
Product Information:

ELG-240-24DA series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output with dimmable DALI function. ELG-240 operates from 100~360VAC with rated voltage of 24V. Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -40 ~ +90 case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

  • Operation Constant current / constant voltage
  • Output current 10A
  • Maximum output power 240W
  • Dimming operation DALI
  • AC or DC Input voltage AC,DC
  • IP Rating IP67
  • Configuration Encapsulated
  • Number of outputs 1
  • Output 24 V dc @ 10 A
  • Series ELG-240
  • Primary Type AC-DC, DC-DC
  • Voltage rating 100 †’ 305 V ac, 142 †’ 431 V dc

Power supply unit, Mean Well version ELG-240-24DA-3Y with power of 240W from 10A constant voltage of 24Volt. Degree of protection IP67 suitable for indoor and outdoor use. Dimmer function for regulating the light via the DALI system.

ELG-240-24DA series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output with dimmable DALI function. ELG-240 operates from 100~360VAC with rated voltage of 24V. Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -40 ~ +90 case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

  • Operation Constant current / constant voltage
  • Output current 10A
  • Maximum output power 240W
  • Dimming operation DALI
  • AC or DC Input voltage AC,DC
  • IP Rating IP67
  • Configuration Encapsulated
  • Number of outputs 1
  • Output 24 V dc @ 10 A
  • Series ELG-240
  • Primary Type AC-DC, DC-DC
  • Voltage rating 100 †’ 305 V ac, 142 †’ 431 V dc
Product Details
14 Items

Data sheet

Barcode:
8050539320928
Reference
ELG-240-24DA-3Y
Input voltage
100-240 V
Output voltage
24 VOLT DC
Depth in mm
35
Width in mm
71
Length in mm
244
Degree of protection
IP67
Material
Aluminum
Adjustable power
with DALI system
Current carrying capacity
10A
Power output in watts
240 w
Insulation class
Insulation class II
Efficiency %
92
USA JAP compatible
Compatible
