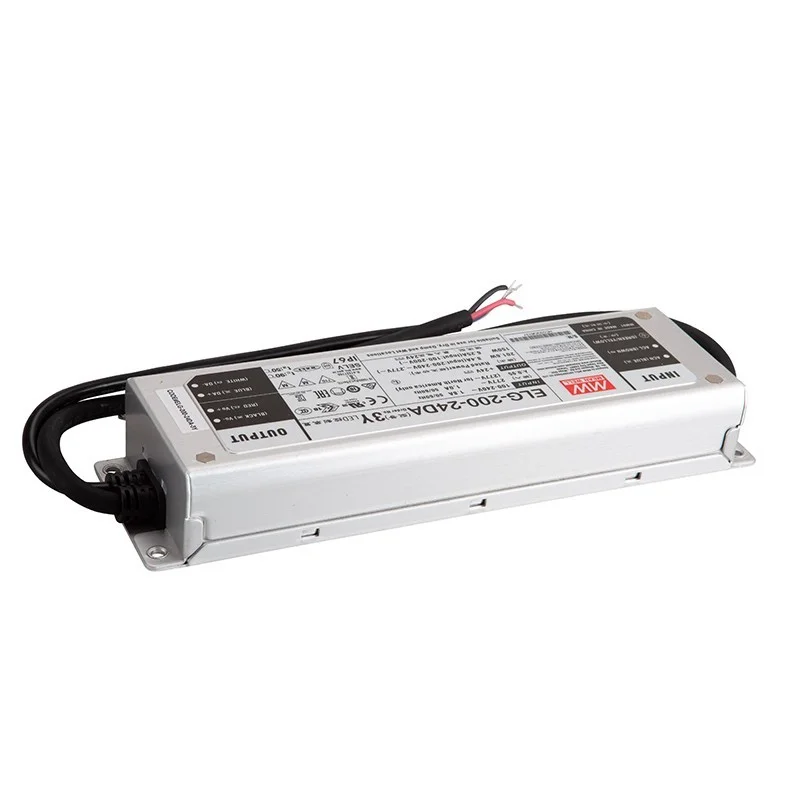

Meanwell Power Supply ELG-200-24DA-3Y 200W 24V 8.4A IP67 DALI Dimmable Constant Voltage Driver

Power supply unit, Mean Well version ELG-200-24DA-3Y with power of 200W from 8,4A constant voltage of 24Volt. Degree of protection IP67 suitable for indoor and outdoor use. Dimmer function for regulating the light via the DALI system.

ELG-200-24DA series is a 200W AC/DC LED driver featuring the dual mode constant voltage and constant current output with dimmable DALI function. ELG-200 operates from 100~360VAC with rated voltage of 24V. Thanks to the high efficiency up to 89%, with the fanless design, the entire series is able to operate for -40 ~ +90 case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

• Output voltage 24V
• Operation Constant current / constant voltage
• Output current 8.4A
• Maximum output power 200W
• Dimming operation DALI
• AC or DC Input voltage AC,DC
• IP Rating IP67
• Configuration Encapsulated
• Number of outputs 1
• Output 24 V dc @ 8.4 A
• Series ELG-200
• Primary Type AC-DC, DC-DC
• Voltage rating 100 †’ 305 V ac, 142 †’ 431 V dc
