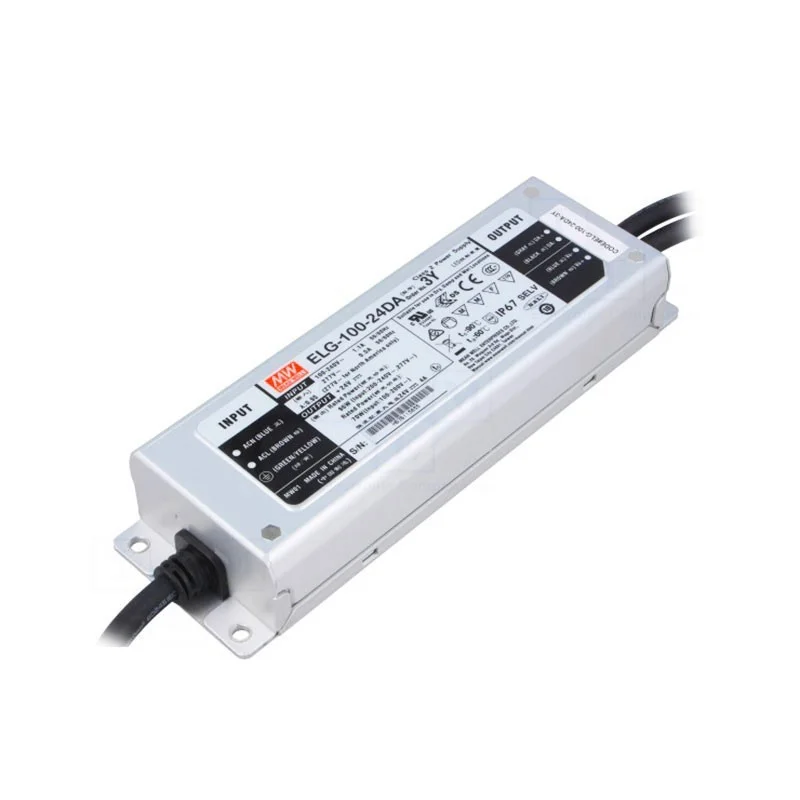

Meanwell Power Supply ELG-100-24DA-3Y 100W 24V 4A IP67 DALI

Meanwell Power Supply ELG-100-24DA-3Y 100W 24V IP67 DALI

Name: Meanwell Power Supply ELG-100-24DA-3Y 100W 24V IP67 DALI
Brand: Mean Well
SKU: ELG-100-24DA-3Y
Price: 59.89 GBP
Availability: InStock

Brand :

£59.89

24 / 48 hours

More buy more save

For 10 products spend per unit

ED power supply unit, Mean Well version ELG-100-24DA-3Y with power of 95.76W from 4A constant voltage of 48Volt. Degree of protection IP67 suitable for indoor and outdoor use. Dimmer function for regulating the light via the DALI system.

payments Secure payment:

delivery_truck_speed Delivery Information:

Fast shipping within 24-48 hours for products marked "Shipped in 1-2 days."

back_to_tab Product returns:

Returns must be made within 30 days of the delivery date.

Description
Product Details

Description

ELG-100-24DA series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output with dimmable DALI function. ELG-100 operates from 100~360VAC and offers models with rated voltage of 24V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40 ~ +90 case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Output voltage 24V
Operation Constant current / constant voltage
Output current 4A
Maximum output power 100W
Dimming operation DALI
AC or DC Input voltage AC,DC
IP Rating IP67
Configuration Encapsulated
Current rating 600mA
Number of outputs 1
Output 24 V dc @ 4 A
Series ELG-100
Primary Type AC-DC, DC-DC
Voltage rating 180 †’ 305 V ac, 254 †’ 431 V dc

Manufacturer : Mean Well

check_circle

In stock

In store we have 19 Items

Data sheet :

Barcode: 8050539320898
Reference: ELG-100-24DA-3Y
Input voltage: 100-240 V
Output voltage: 24V DC
Depth in mm: 35
Width in mm: 63
Length in mm: 200
Degree of protection: IP67
Material: Aluminum
Adjustable power: with DALI system
Current carrying capacity: 4A
Power output in watts: 100 w
Efficiency %: 91
Compatible voltage: EU-AUD-USA-UK-JAP

Download :

attach_file Download

Warranty :

2-year warranty from date of purchase

counter_2 workspace_premium

Related Products

Viewed products

-20% Reduced price On sale!

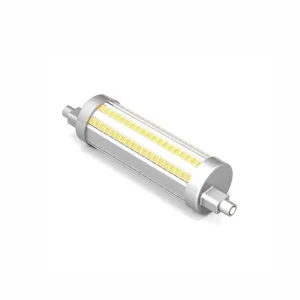

Bot Lighting Shot 15W Linear R7S LED Bulb 2000lm Dimmable
