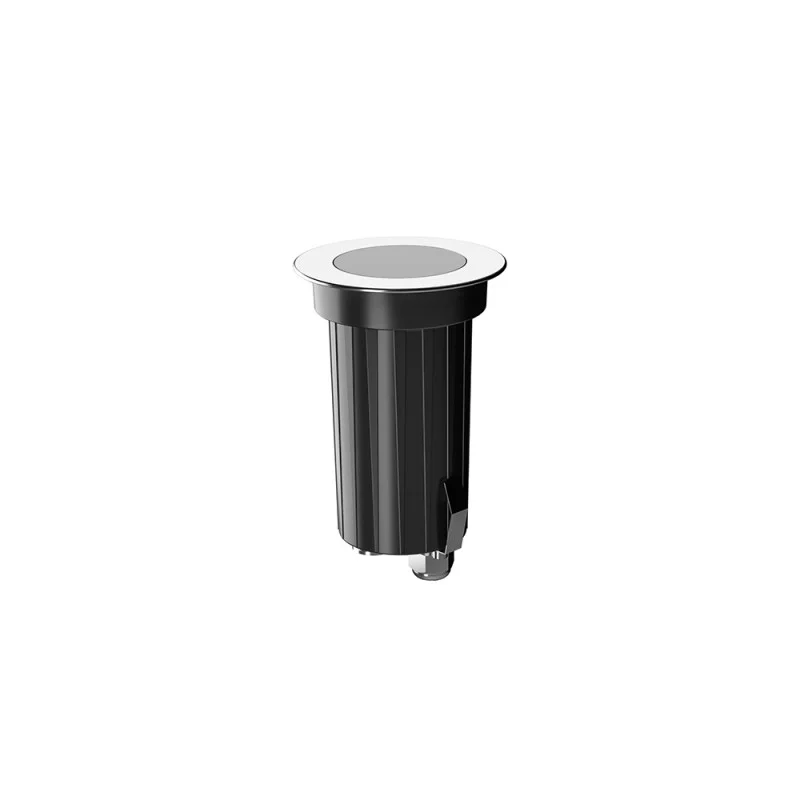

Linea Light Suelo R 8W RGBW recessed LED spotlight carriageable

Product Information:

Single emission uplights for outdoor application. The RGBW - 3000 K or 4000K LED light source, with Ultra Spot, Medium Wide Flood and Spot light distribution, is made up of 1 powerled LED.

The device body, made of en ab - 46100 die-cast aluminum, has a matt black ral 9005 finish, obtained by open pore anodizing and powder coating. The degree of protection is IP68 and the total weight is 0.750 kg. The power driver is not supplied and must be ordered separately.

The power absorbed by the appliance is 8 W. The power cable is included and has a length of 1 m.

The appliance has insulation class III and can be installed on the floor on masonry with outer casing cod. 99681 not included.

Compliant with the EN 60598-1 standard and the relative particular requirements.

Characteristics:

• Finish colors: Black
• Power: 8W
• Light color: RGBW 3000K with warm white - RGBW 4000K with neutral white
• Degree of protection: IP68
• Impact resistance: IK10
• Walkable
• Driveway: 2500kg
• Luminous flux:74 lm red - 121 lm green - 21 lm blue - 122 white
• Beam openings: Ultra Spot with very narrow beam - Spot with narrow beam - Medium Wide Flood with medium beam
• Dimmable: Yes
• Current voltage: 630mA

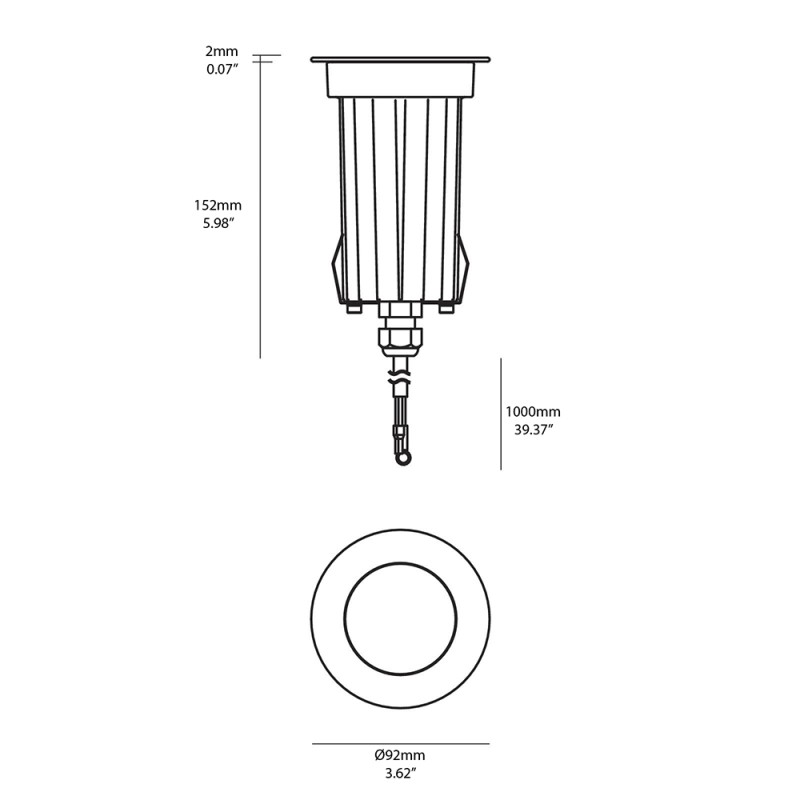

• Dimensions: Ø92x152mm

For more information, see the attached PDF.
