Lampo Junction Connector 3 Poles ''T'' For Use In Outdoor IP68

    Junction Connector 3 Poles T For Outdoor IP68 Waterproof

    Kč225.92 Save 25%
    Kč301.23
    24 / 48 hours

    More buy more save

    For 5 products spend per unit
    For 10 products spend per unit

    Junction Connector 3 Poles T for Outdoor IP68 by Lampo Lighting, in thermoplastic PVC, up to 450V AC, for reusable T-branch cable connections.

    Read more ... arrow_drop_down
    35 Items
    local_shipping
    Shipping in 1-2 daysinfo

    Quantity

    Description

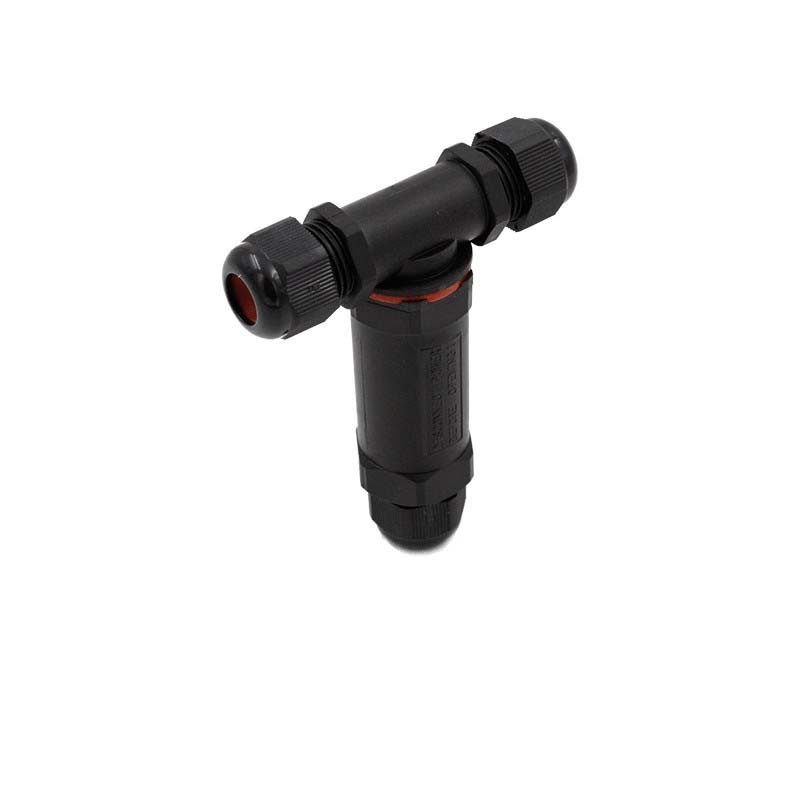

    The Junction Connector 3 Poles T for Outdoor IP68 by Lampo Lighting (ref. CONNIP68T) is a three-way circular branch joint in thermoplastic PVC, designed to connect and branch electrical cables in a T-configuration in environments exposed to weather and moisture. Compact in size — 100 mm in length, 115 mm in width and 32 mm in diameter — it ensures a fixed and reusable installation thanks to its fast-hook connector system, which simplifies flying input-output mounting.

    Specifically designed for outdoor use, this connector provides an IP68 protection rating, making it suitable even for installations subject to prolonged submersion. Corrosion resistance is certified to EN60068-2-11:2000, with a salt mist test at 5% concentration for 1,000 hours at 35 °C, confirming its reliability in coastal or highly humid environments. It supports a maximum voltage of 450V AC and a maximum current of 32A, with compatible cable sections from 1.0 to 2.5 mm², and is approved for the main international voltage standards (EU, USA, UK, Australia, Japan). The black colour blends discreetly into any outdoor electrical installation.

    For dimensions, technical specifications and further product information, please refer to the attached PDFs.

    Lampo Lighting
    Guaranteed Original Product
    35 Items

    Data sheet

    Barcode
    8056093642551
    Reference
    CONNIP68T
    Input voltage
    450V MAX
    Width in mm
    115
    Length in mm
    100
    Diameter in mm
    32
    Degree of protection
    IP68
    Material
    Pvc
    Cable in
    3
    Compatible voltage
    EU-AUD-USA-UK-JAP
    Download
    picture_as_pdf Scheda tecnica
    Warranty verified 2-year warranty from date of purchase
