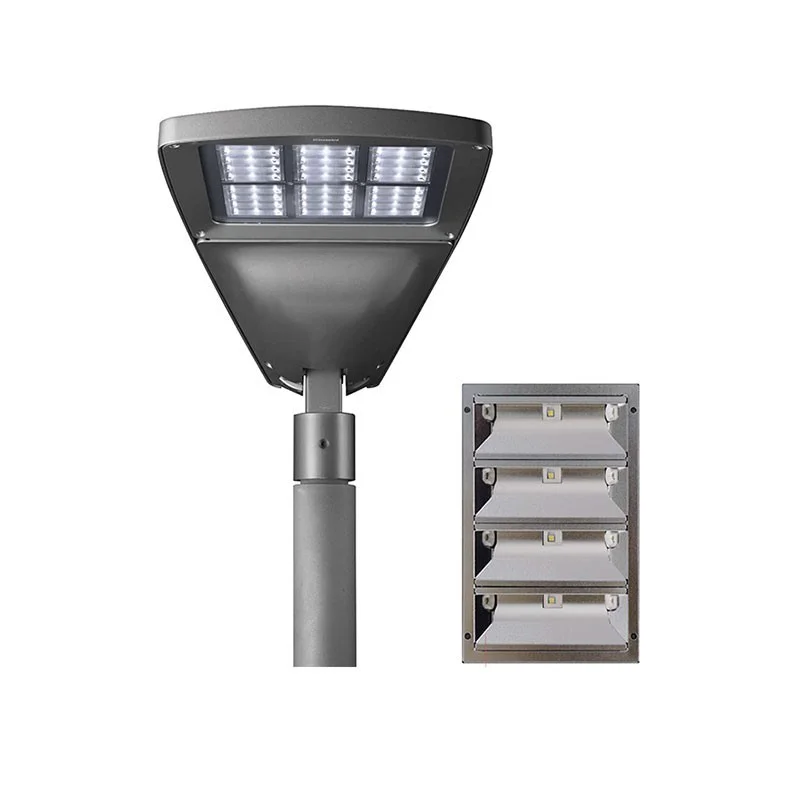

Urban lighting or home Wow Mini 52W system floodlight for pole with LED light sources with dimensions of 620x307mm.Available in warm 3000K or neutral 4000K light with a luminous flux of 5800-6000 lumens.
Outdoor lighting fixture with direct light street optic with high visual comfort (G4), designed for the use of light sources with power LEDs. Optical assembly and pole attachment system made of EN1706AC 46100LF aluminum alloy. The painting phase is carried out with primer and liquid acrylic paint which provides high resistance to atmospheric agents. Possibility of adjusting, also by means of a graduated scale, the inclination with respect to the road surface of + 15 ° / -10 ° (in steps of 5 °) in pole-top mounting and + 5 ° / ¬20 ° (in steps of 5 °) in lateral mounting. The glass fixed to the frame closes the LED compartment which is fixed to the component compartment by means of a hinge and 2 screws. The high IP degree is guaranteed by the silicone gasket placed between the two elements. Complete with circuit with monochromatic power LEDs, silver aluminum reflectors. LED compartment replaceable directly on site. DALI electronic power supply.
The floodlight can be installed with pole-top or lateral mounting using a die-cast aluminium pole-top for diameters of 46/60/76 mm. Diameters from 60 to 76 mm without using the standard adaptor, and from 46 to 60 mm with the adaptor. Secured to the pole by two bolts and two safety locking nuts.
wall arm or pole-top
The pole-top attachment guarantees the completely safe passage of power cables, avoiding piercing. 6-pole terminal board for 7- 14mm cables. Overvoltage protection: 10KV Common Mode and 6KV Differential Mode
