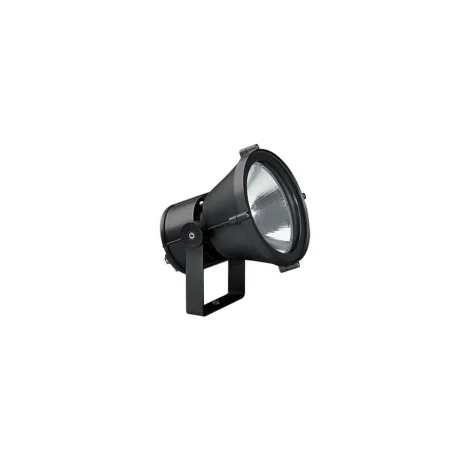

iGuzzini Maxywoody ø315 Cob LED floodlight IP67 dimmable

Product Information:

Maxiwoody 315mm outdoor projector dimmable DALI 3000 or 4000k with choice of beam angle between 12°, 30° and 46° and four colors available including: white, black, gray and brown.

Product details

Direct light luminaire, for use with LED light sources.

Installation on the ground, wall (via fisher) and on pole systems.

Consisting of optical compartment and bracket.

Optical compartment and frame in aluminum alloy; tempered sodium-calcium sealing glass, colorless transparent, thickness 4 mm; superpure aluminum reflector.

Double adjustability of the optical assembly.

Graduated scale with mechanical aiming lock.

Monochromatic LED versions: DALI dimmable single chip and chip on board.

Luminaire designed for pass-through wiring.

All screws used are A2 stainless steel

On request available in on-off version at 82W

Technical data

• Light power: 4000K 8750lm - 3000K 8550lm
• Dimmable: Dali
• Dimensions:ø313x319
• Color: Grey, white, black and brown
• Designer: Mario Cucinella
• Material: Aluminum
• Power:51W
• Light beam angle: 12°-30°-46°
• Water resistance: IP67
• Impact resistance: IK08
• Mounting: Wall mounted, pole arm, ground fixed, wall mounted, ceiling mounted, u-bracket

For more information, see the attached PDF.
