iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp

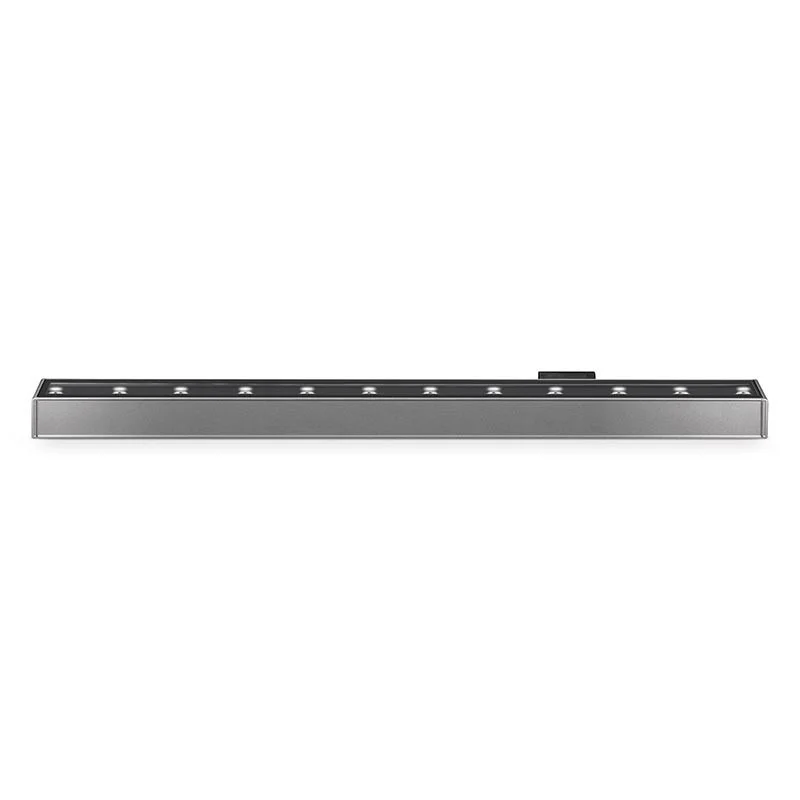

iGuzzini Linealuce Compact 75 surface wall Outdoor LED Bar Lamp IP66

Select Light color tone
Select Lunghezza
£573.71 Save 14%
£667.11
The product can be ordered

More buy more save

For 5 products spend per unit
For 10 products spend per unit

Direct light luminaire, designed for wall lighting up to 4-5 meters in height. Ceiling and wall mounted. Consists of a body and supports for installation, to be ordered separately.

Read more ... arrow_drop_down
local_shipping
Shipped in 7-21 working days
More information about shipping

Quantity

Description

Lateral power supply box made of PPS (polyphenylene sulfide). The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED plate in Neutral White 4200K. Fitted with a PMMA diffusing filter and optic with plastic (methacrylate) lens for Wall Grazing lighting. The lateral box is supplied with a double connector, male/female, with 3-pin quick coupling for pass- through wiring and a closing cap on one side. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements. Extruded aluminium body, with die-cast aluminium end caps complete with silicone seals. Coated with liquid acrylic paint with a high level of weather and UV ray resistance. Available in different sizes and powers.


Installation

Accessories available for installation: ±90° adjustable arms L=138mm (code 5576), arms extendable from 309 to 389mm and adjustable ±90° (code 5577), bracket for wall-mounting L=350mm (code BZI0), brackets for mounting on balustrades L297mm (code 5578), bracket for surface- or ceiling-mounting L=350mm (code 5570).

  •  LED
  •  5,9W 504lm (8,2W-900lm) - 12W 1008lm (16,6W-1800lm) - 18W 1512lm (22,8W-2700lm)
  •  Luminous Efficiency (system value): 61lm/W
  •  4000K- 3000K CRI 80
  •  Electronic Control gear included
  •  Optic: Wall Grazing 4-5 meters
  •  Adjustability: fixed
  •  Material: extruded aluminium
  •  Size (mm): 528x75x66 - 1056x75x66 - 1585x75x66
  •  Environment: indoor/outdoor
  •  Design: Jean Michel Wilmotte
IGuzzini
Guaranteed Original Product

Data sheet

mpn
3.BG97.715.0
EAN13
8025550328116
Reference
3.BG97.715.0
Input voltage
100-240 V
Depth in mm
114
Length in mm
528-1056-1512
Degree of protection
IP66
Material
Aluminum
Light source
LED
Average hours duration
60000
Primary color
GRAY COLOR
Driver power supply
With driver
Complete with bulb
Bulb included
Compatible voltage
EU-AUD-USA-UK-JAP
Download
picture_as_pdf Scheda tecnica picture_as_pdf Download 1 picture_as_pdf Download 2 picture_as_pdf Download 3 picture_as_pdf Download 4 picture_as_pdf Download 5
