iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
  • iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp
iGuzzini BG96 Linealuce Outdoor LED Bar Ceiling or Wall Lamp

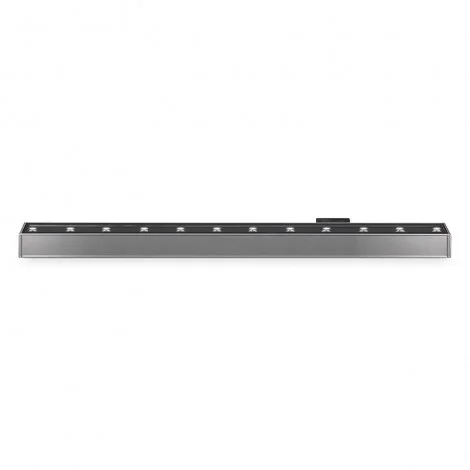

iGuzzini Linealuce Compact 75 surface wall Outdoor LED Bar Lamp IP66

3.BG97.715.0

Trustpilot
$615.58 Save 16%
instead of $732.83
The product can be ordered

More buy more save :

If you buy 5 products the price is
If you buy 10 products the price is

Direct light luminaire, designed for wall lighting up to 4-5 meters in height. Ceiling and wall mounted. Consists of a body and supports for installation, to be ordered separately.

Read more ...
Select Color Light Tone
Select Lunghezza
Quantity
local_shipping Shipped in 7-21 days


payments You can pay in installments with PAYPAL OR SCALAPAY
Description
Product Information:

Lateral power supply box made of PPS (polyphenylene sulfide). The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED plate in Neutral White 4200K. Fitted with a PMMA diffusing filter and optic with plastic (methacrylate) lens for Wall Grazing lighting. The lateral box is supplied with a double connector, male/female, with 3-pin quick coupling for pass- through wiring and a closing cap on one side. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements. Extruded aluminium body, with die-cast aluminium end caps complete with silicone seals. Coated with liquid acrylic paint with a high level of weather and UV ray resistance. Available in different sizes and powers.


Installation

Accessories available for installation: ±90° adjustable arms L=138mm (code 5576), arms extendable from 309 to 389mm and adjustable ±90° (code 5577), bracket for wall-mounting L=350mm (code BZI0), brackets for mounting on balustrades L297mm (code 5578), bracket for surface- or ceiling-mounting L=350mm (code 5570).

  •  LED
  •  5,9W 504lm (8,2W-900lm) - 12W 1008lm (16,6W-1800lm) - 18W 1512lm (22,8W-2700lm)
  •  Luminous Efficiency (system value): 61lm/W
  •  4000K- 3000K CRI 80
  •  Electronic Control gear included
  •  Optic: Wall Grazing 4-5 meters
  •  Adjustability: fixed
  •  Material: extruded aluminium
  •  Size (mm): 528x75x66 - 1056x75x66 - 1585x75x66
  •  Environment: indoor/outdoor
  •  Design: Jean Michel Wilmotte
attach_file
Datasheet
attach_file
Datasheet_1
attach_file
Datasheet_2
attach_file
Datasheet_3
attach_file
Datasheet_4
attach_file
Datasheet_5
Warranty 2 Years
100% original product by

Product Details

Data sheet

EAN13
8025550328116
Reference
3.BG97.715.0
Input voltage
100-277 V
Depth in mm
114
Length in mm
528-1056-1512
Degree of protection
IP66
Material
Aluminum
Light source
LED
Average hours duration
60000
Luminous efficacy in lumens
900-1800-2700
Product Color
GRAY COLOR
Driver power supply
With driver
Complete with bulb
Bulb included
Compatible current
EU-AUD-USA-UK-JAP
