iGuzzini Laser Blade InOut 5 LED recessed luminaire for a total of 10W frame or minimal installation for indoors or outdoors use with a waterproof rating (IP65). Composed of two LEDs with fixed optics having a narrow beam at 12 ° degrees or wide at 48° degrees.
Miniature rectangular recessed downlight luminaire composed of 5 optical elements with LED source with fixed optics, opening beam Small (12 °) or Wide Flood (48 °). Main body with radiant surface made of die-cast aluminum; extruded aluminum frame with screen printed protection glass. Recessed installation on false ceilings from 1 to 25 mm thick or on concrete ceilings using a special casing. Recessed installation with flush frame on 12.7 mm or 15 mm thick on false ceilings through adapter frame to be ordered separately. High-definition OptiBeam optic integrates in the innovative black anti-glare screen that obtains an emission with controlled luminance UGR <19. Supplied with electronic ballast. Available in white/black and grey/black.
Available in two colors white / black and gray / black. Possibility to select three different shades of warm light 2700K and 3000K and neutral light 4000K. Dimensions (mm): 158x49x65, Weight (kg): 0.63. Complete with constant current power supply with DALI dimmable function to adjust the light intensity or not dimmable.

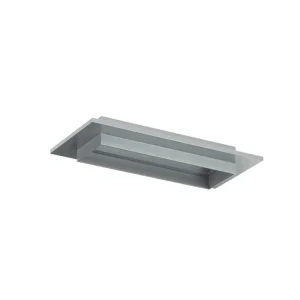

Recessed installation with protruding frame on 1-20mm-thick suspended ceilings. Recess opening on suspended ceiling, size 141x37. Recessed installation with flush frame on 12.5mm- or 15mm-thick suspended ceilings, through adapter frame to be ordered separately. Installation on concrete ceilings using an outer casing to be ordered separately (flush and protruding frame).
