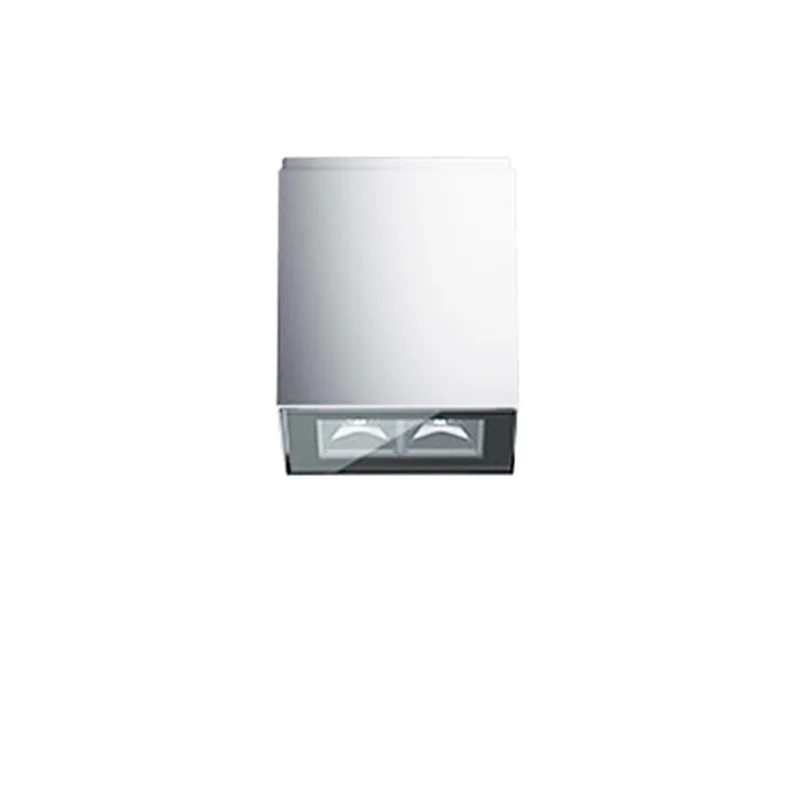

iGuzzini Laser Blade InOut 2 LED Ceiling Lamp for Outdoor

Dual optic element, outdoor rectangular, ceiling-mounted luminaire available in 2700K, 3000K warm light or 4000K neutral light source LED lamps and a fixed Flood optic. Consists of an optical assembly (rectangular), an upper base, a glass cover, and a ceiling plate. The optical assembly and upper base are made of aluminium alloy and are subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. AISI 304 stainless steel ceiling fixing plate. The tempered sodium-calcium sealing glass is transparent, with black serigraphy on the edge, 3mm thick and joined to the optical assembly with silicone. There are silicone seals between the upper base and the optical assembly too. Metallised, thermoplastic, high definition optic, integrated in a rear position in the black, anti-glare screen. Single cable entrance via black polyamide PG11 cable clamp, suitable for 6.5 - 11mm cables. Connection with three fast-coupling terminals. Possibility to use unipolar cables with 2.4 - 3.4mm diameter ( 1-2,5mm2) All external screws used are made of A2 stainless steel.

Installation:
