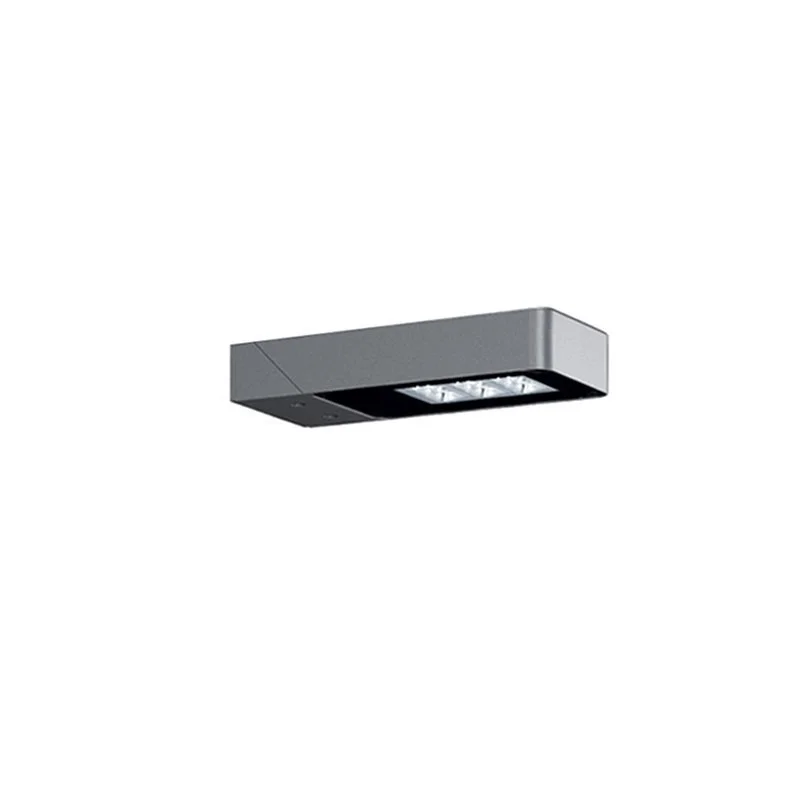

Outdoor LED wall lamp, with light emission up or down. Optical compartment complete with electronic power supply and output power supply cable. Versions are available with on/off power supply and DALI.
Direct light luminaire, designed to use monochrome LED lamps. It consists of a body, an optical assembly and a base for fixing it to the wall. Optical assembly and die-cast aluminium glass-holder frame. 5mm thick tempered sodium-calcium closing glass with black serigraphy. Transparent glass with black serigraphy for high performance direct and indirect lighting. Body and optical assembly subjected to a multi-step, pre-treatment process, in which the main phases are degreasing, fluorozirconation (a protective surface film) and sealing (with a nano-structured silane layer). The following painting stage consists of a primer and a liquid acrylic paint, cured at 150°C, with a high level of weather and UV ray resistance. Both the LED unit and the ballast may be substituted. Optical assembly complete with electronic control gear and output power cable. IP68 connectors to be ordered separately are required for the electrical connection. All screws used are made of stainless steel.
AL: Longitudinal Asymmetric Optic with high performance Opti-smart reflectors in superpure aluminium coated with silver deposits offering uniform light distribution.
AT: Transversal Asymmetric Optic with high performance Opti-smart reflectors in superpure aluminium coated with silver deposits offering uniform light distribution.
Product complete with 220 - 240Vac normal electronic power supply or available in the DALI dimmable version.
Available in three different models, with up light or down light.
Wall fixing with anchoring dowels not supplied in the product.
Both the LED unit and the ballast may be substituted. Optical assembly complete with electronic control gear and output power cable. Includes a gel-based IP68 connection box for pass-through wiring. High level visual comfort for pavements and walkways. All the screws used are made of A2 stainless steel.
