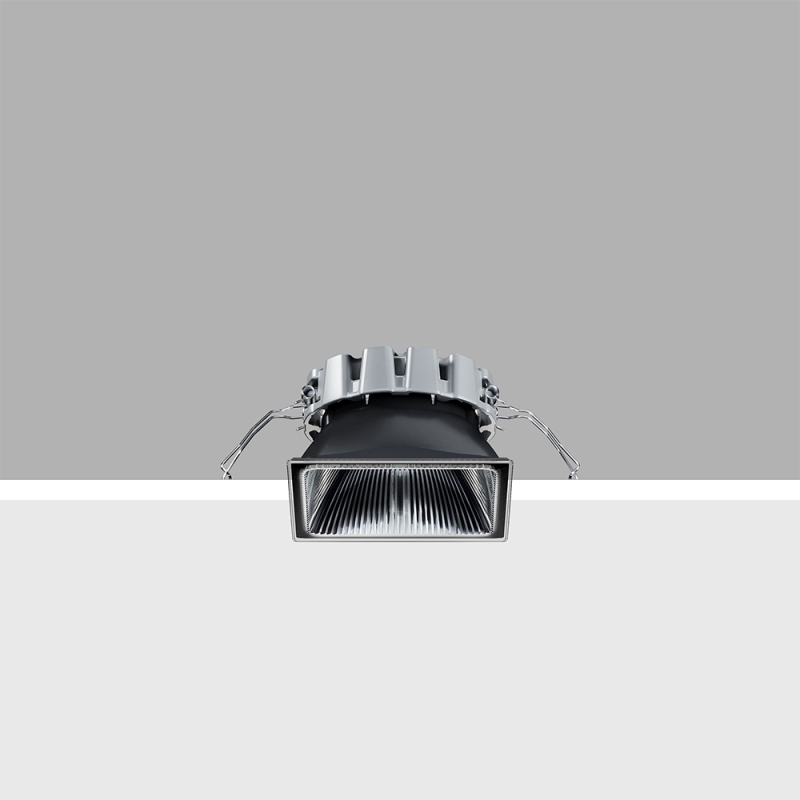

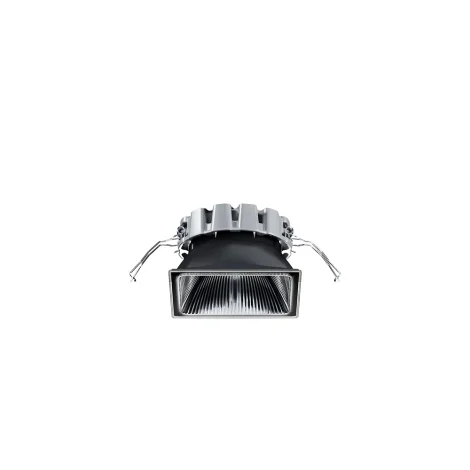

iGuzzini Easy space square LED recessed spotlight

Product Information:

Square recessed spotlight with fixed optics available in black and white and in three different sizes with perimeter frame with high efficiency standard flow LED source to obtain an excellent luminous efficiency ratio in general lighting applications. Emitting unit composed of a transparent prismatic reflector in PMMA, combined with a flux recuperator and diffuser screen, both made of PMMA, integrated into the external polycarbonate structure. The painted die-cast aluminum heat sink body incorporates the steel wire fixing springs. Power supply unit connected to the appliance. Equipped with Opti Diamond, the result of a careful study of materials, engineering and workmanship such as to guarantee optimal brilliance and a unique splendor, like a diamond. This effect is even more emphasized by the slightly bright external frame, which underlines its preciousness in the ceiling.

On request also available in a dimmable version and with emergency function.

Characteristics:

• Material: Die-cast aluminium
• LED light source: 9.5 - 15 - 23W
• Color temperature: 3000K Warm white - 4000K Neutral white
• Power: Small 9.5W - Medium 15W - Large 23W
• Light power: Small 1630 lm 3000K 1650 lm 4000K - Medium 2440 lm 3000K 2640 lm 4000K - Large 3680 lm 3000K 3720 lm 4000K
• Light beam: general light
• NOT dimmable
• Colors: White, Black
• Indoor: IP20
• Wiring: Electronic operating components included - power connection on the quick connection terminals of the driver.

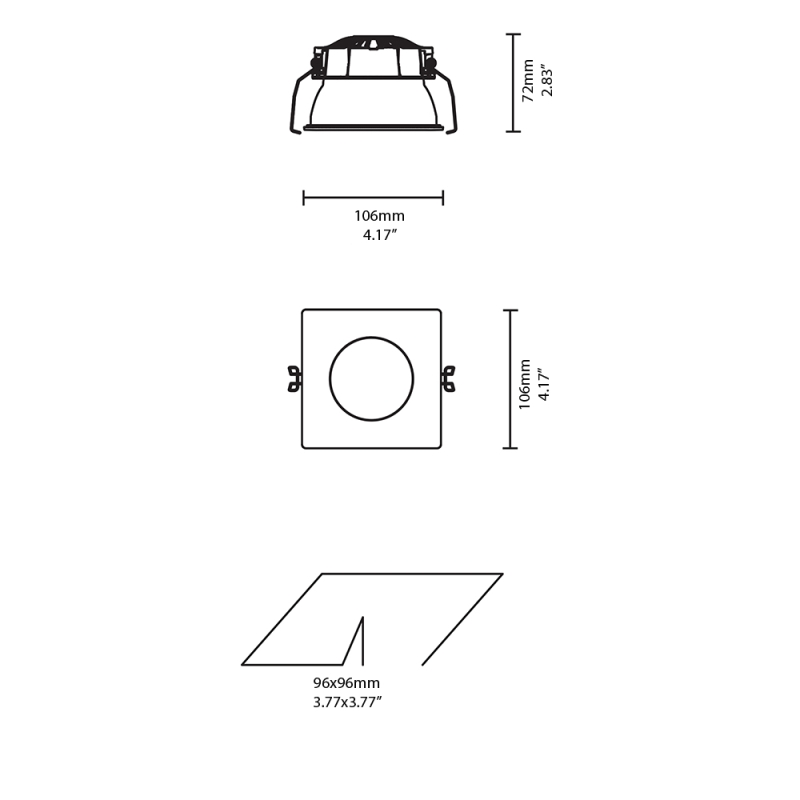

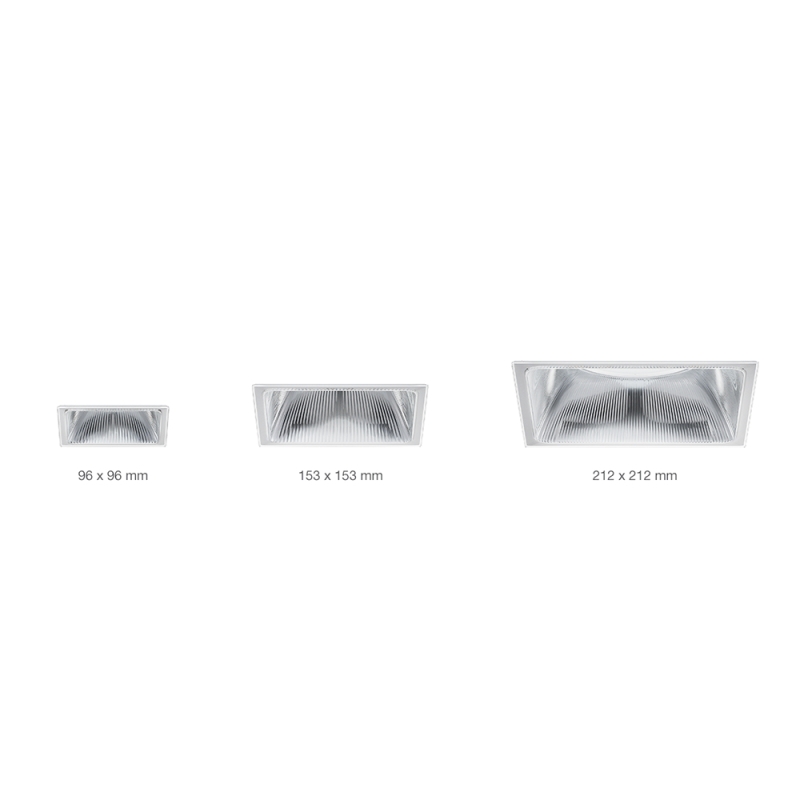

Dimensions:

• Small: 106x106x72mm - Installation hole 96x96mm
• Medium: 164x164x100mm - Installation hole 153x153mm
• Large: 225x225x100mm - Installation hole 212x212mm

For more information, see the attached PDF
