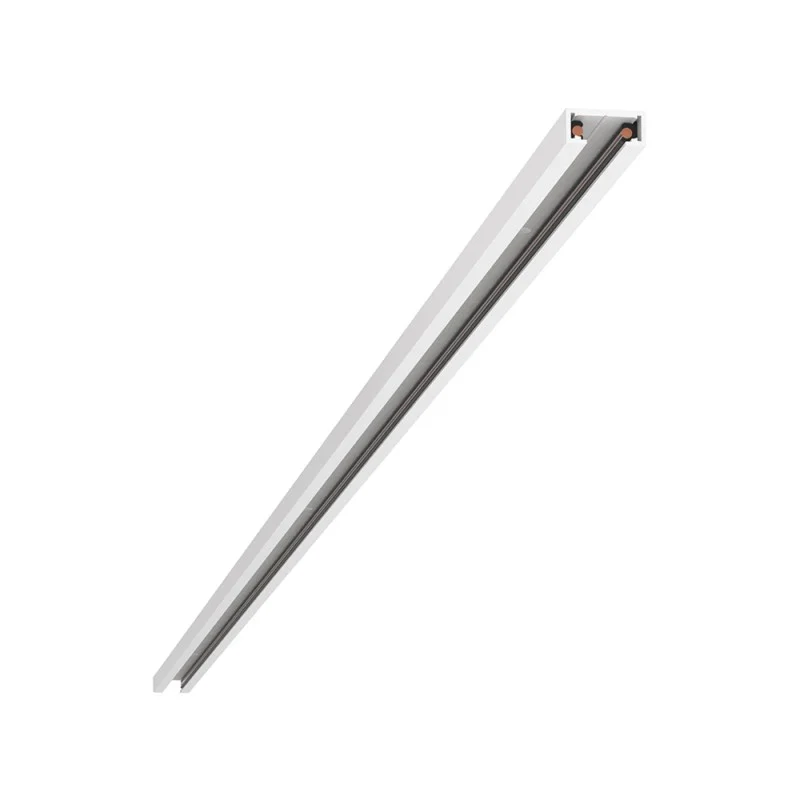

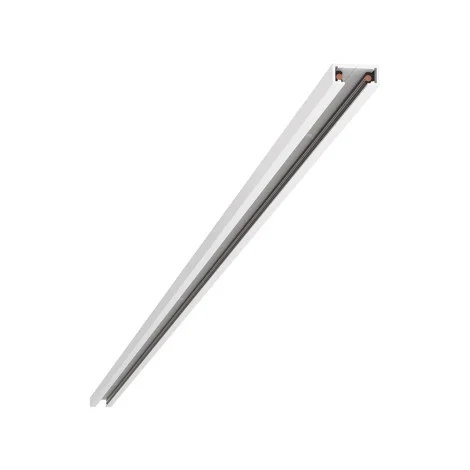

Flos ZERO TRACK surface track profile 24V

Innovative 24V system, composed of an extremely miniaturized guide that adapts subtly to the surface. It can be integrated into any type of ceiling or wall, with a wide range of adjustable fixtures, including the Atom collections by Piero Lissoni and Find Me by Jorge Herrera. The Zero Track binary can look like a recessed luminaire that blends and integrates perfectly with any architectural structure.

Indoor electro-mechanical profile for surface installation on ceiling or wall. Available in 1000mm or 2000mm lengths. The power connector, the intermediate connectors and the caps must be ordered separately (see Installation Accessories). Coplanar angular mechanical connectors available that can be moved at 90° and curved (symmetrical element from left to right), 90° angular connectors with height change (wall-ceiling or ceiling-wall), and "T" and "X" connectors. Coplanar 90° and curved connection elements available. For vertical installations it is necessary to install the stopper, to be ordered separately. For non-accessible ceiling solutions, the system is supplied with dimmable power sources, with 1-10V broadcast control system. Dimmable remote power supply available with 1/10V and DALI. Surface power unit available with 1/10V protocol.

Power Supply Unit - The track system can be powered by a remote source NOT INCLUDED or with the power supply equipment to be plugged into the track, supplied with an adjustable power source. The initial power connector has space for cable entry at both the top and side. The power connector, the intermediate power supply and the 90° angle elements can only be fed from the rear. The maximum track length with the same driver is 10 meters. Dimmable drivers with PWM voltage output should be used at frequencies between 250 and 500Hz.

See diagram in the images for surface or remote driver installation examples.

• Material: Aluminum
• Length: 1 meter / 2 meters
• Accessories: NOT included
• Color availability: White, Chrome, Black, Deep Brown, Bronze

Compatible OPTICAL SYSTEMS

• find me 0
• find me 1
• find me 2
• Find me 1 Suspension
• Atom 90
• Atom 120
• Atom 200

Optical systems and all connection elements must be ordered separately. See ASSEMBLY ACCESSORIES.
