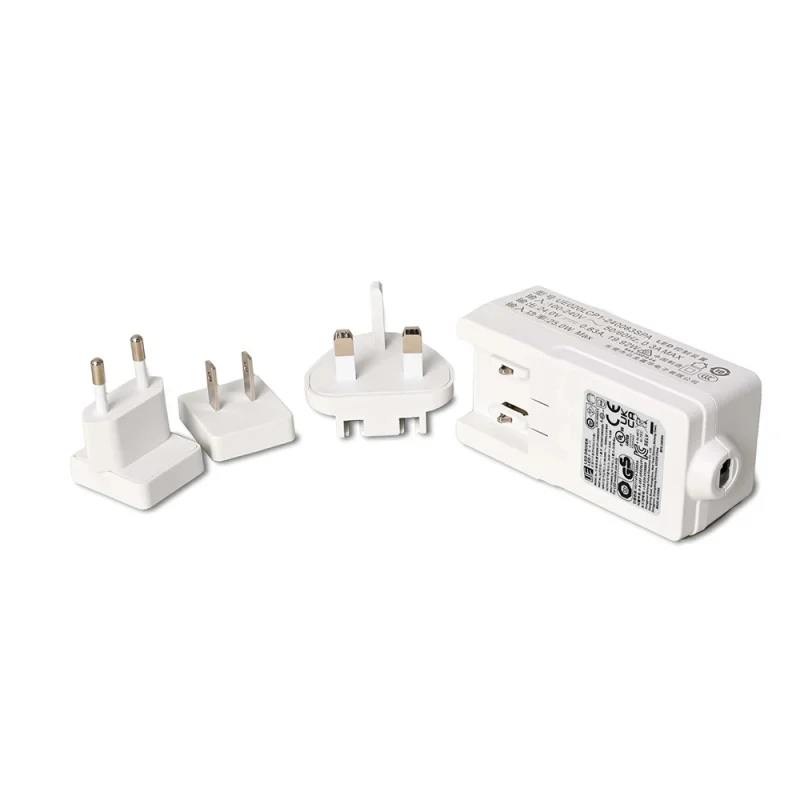

Flos White plug kit and LED driver replacement part
  • Flos White plug kit and LED driver replacement part
  • Flos White plug kit and LED driver replacement part

Flos White plug kit and LED driver replacement part

Brand :
¥605.36 Save 5%
¥637.22
24 / 48 hours

Flos driver + plug kit, white. Spare part for D'E-Light, Piani, Kelvin LED F/T, ADJ LED and Tab LED F/T, Bon Jour and Bon Jour Versailles and other flos lamps.

Read more ...
local_shipping Shipping time:
Shipped in 1-2 days
check_circle
In stock
1 Item
call_made Click here for availability information

Quantity

Description

Features

Wide range of AC input voltage 90-264VAC.

Protections against : short circuit/over current/over voltage/over load/over temperature.

IP20 design for indoor application

Non constant current function

Meets Energy Star levelVI and Coc V5 Tier2(2016)

Meets 4KV surge immunity

Changeable AC plugs for universal use: Type G, Type A, Type C

Output match DC Jack/DC Cable

Fireproof plastic housing

Input Voltage Range90 - 264VAC

Efficiency81.84%-85.45%

Power Factor<=0.075W
MTBF>100,000 Hours,MIL-HDBK-217F(25°)
Environmental Parameter
Humidity10 - 90% RH
Operation Temp0 - 45°
Storage Temp- 20 - 60°
Saftey Approval

TUV-GS(IEC/EN61347)PSE(J61347)CCC(GB19510)cULus(UL8750)

EMC StandardsEN55015J55015CISPR15
Dimensions

88mm (L) ; 30mm (W) ; 57mm (H) ;  Weight 140g

Applications
Down Light, T8 LED tube (external), LED driver(indoor)

Products

SeriesModelOutputCurrentEFF.RIpple
Range
C.V.modelUES18LCP-XXXYYYSPA5.0-6.0V,0-3.00A±6%81.84%200mV
6.1-7.0V,0-2.00A±5%83.36%200mV
7.1-8.0V,0-2.00A±5%84.21%200mV
8.1-9.0V,0-2.00A±5%84.91%200mV
9.1-10.0V,0-1.80A±5%84.97%200mV
10.1-11.0V,0-1.65A±5%84.96%200mV
11.1-12.0V,0-1.50A±5%85.05%200mV
12.1-13.0V,0-1.40A±5%85.14%200mV
13.1-14.0V,0-1.30A±5%85.17%200mV
14.1-15.0V,0-1.20A±5%85.14%200mV
15.1-16.0V,0-1.13A±5%85.18%200mV
16.1-17.0V,0-1.10A±5%85.37%200mV
17.1-18.0V,0-1.00A±5%85.19%200mV
18.1-19.0V,0-0.95A±5%85.22%200mV
19.1-20.0V,0-0.90A±5%85.22%200mV
20.1-21.0V,0-0.86A±5%85.25%200mV
21.1-22.0V,0-0.82A±5%85.25%200mV
22.1-23.0V,0-0.80A±5%85.36%200mV
23.1-24.0V,0-0.75A±5%85.26%200mV
Flos spare parts
check_circle
In stock
1 Item

Data sheet :

Barcode
8059607073353
Reference
RF6600209
Input voltage
100-240 V
Output voltage
24V DC
Depth in mm
57
Width in mm
30.2
Length in mm
95
Degree of protection
IP65
Material
Pvc
Adjustable power
Dimmable
Current carrying capacity
3A
Compatible voltage
EU-AUD-USA-UK-JAP
