Flos Wallstick adjustable steplight

Product Information:

Wallstick is a family of professional outdoor lamps for accent lighting with a rigorous design, ideal for residential and landscape projects. The other versions of the collection are available in the Product Family.

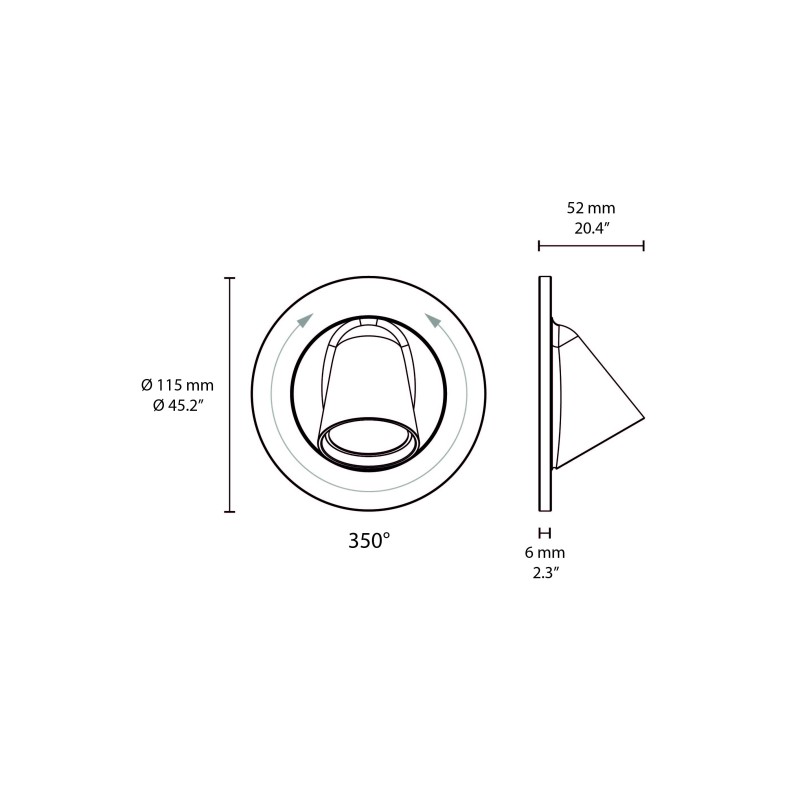

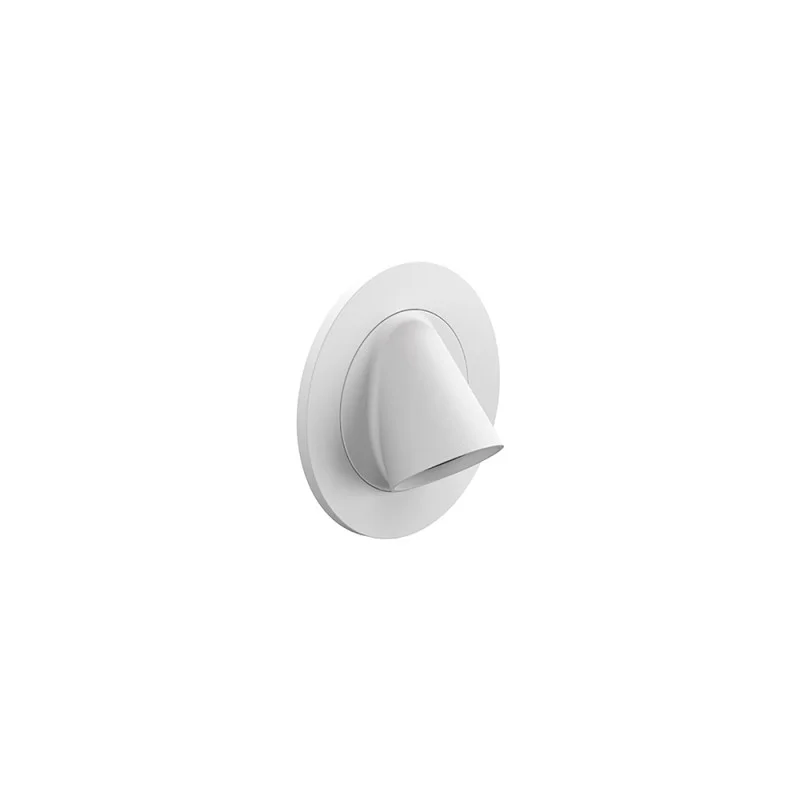

Wallstick is a wall-mounted steplight fixture for outdoor environments, with LED light source and flared head that can be adjusted by 350° on the vertical axis. The body of the fixture is made of die-cast aluminum with a low copper content. Available in different finishes with a double layer powder coating according to the QUALICOAT standard. The first layer of epoxy powder gives chemical and mechanical resistance, the second finishing layer ensures resistance to UV rays and corrosive atmospheric agents. The painted surfaces are treated with alkaline and acid washes, rinsed with demineralised water and subjected to a chemical conversion treatment to protect against oxidation. The fixing screws are in AISI 316L stainless steel. Textured glass diffuser to ensure a homogeneous distribution of light on the ground. The luminaire is supplied with two 200mm long outgoing power cables and with an IP-sealed connection kit. The 24V power supply can be installed remotely (no formwork required).

• Source: 2.5W LED
• Light temperature/luminous flux: 2700K - 264 lm / 3000K - 283 lm / 4000K - 303 lm
• PWM dimmable
• Optics: 52°
• Driver: NOT included

NOTES

We recommend using a connection system with a degree of protection greater than or equal to the degree of protection of the luminaire.

During the installation and the maintenance of the fixtures it is important to be careful and avoid damages on the paint coating.

Damages on the coating exposed to outdoor conditions or water, could cause corrosion.

Chemical substances affect the anticorrosion covering protection.

For LED fixtures, there is evidence that most of the damages are connected to electrical effects related to the insulations, which cause destructive electrical discharges

These effects are frequently caused by:

• over voltage coming from the mains’ network where fixture is connected.

• electrostatic discharge (ESD) coming from the environment.

The use of a protective device against the overvoltage on the electrical installation is warmly suggest this helps to reduce the intensity of some of these phenomenon and prevent irreversible damages. The selection of the type of device to be used must be adjust on the electrical plant.
