Flos Spot Module Pro Led Array 18W for Light Cut Mini

Light Cut Mini is a lighting system consisting of an extruded profile that integrates perfectly into ceilings exclusively made of plasterboard. It is prepared for easy integration of lighting using LED projectors. The projectors are designed to be installed directly above the profile, with Class II remote devices. Light Cut mini profiles are offered for installation in three different configurations: Perimetral, 70 mm Channel and 140 mm Channel (see diagram in the pictures), compatible with all spotlights.

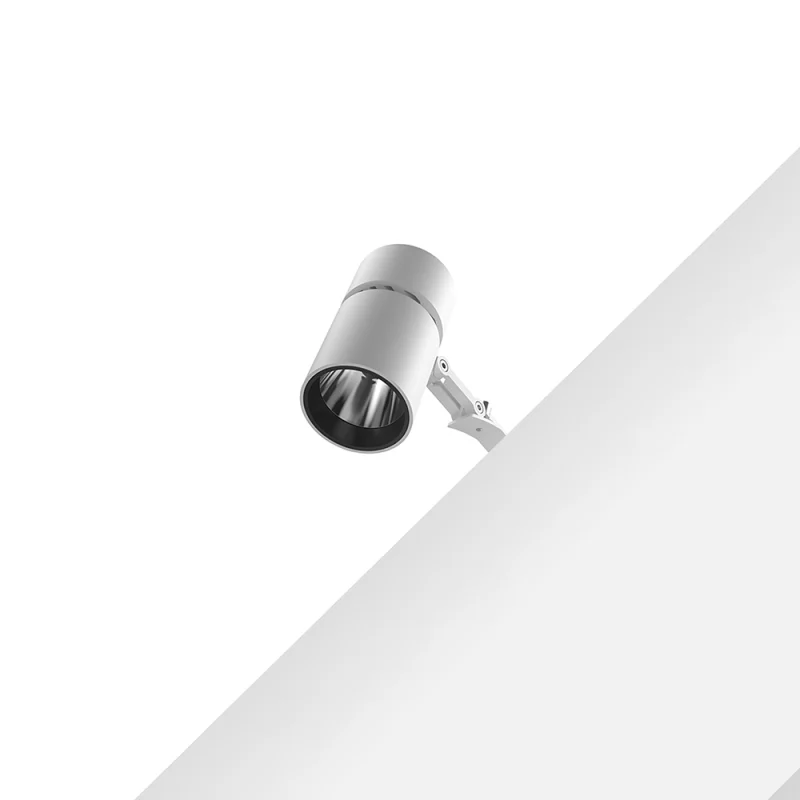

Spot Module Pro LED Array - spotlight for installation in the Light Cut Mini structure. Distinctive design and essential geometries are the basis of this functional and versatile spotlight. It is offered in white or black finishes, and in different versions. In fact, it is possible to choose the optics from Spot 11°, Medium 20° and Flood 42° versions. The remote constant current power source is not included. The luminaire is dimmable with appropriate driver (not included). It can also be swiveled for an adjustable spread as needed, 350° on the horizontal axis and 180° on the vertical axis.

- Source: LED Array DC 18W 500mA

- Dimming protocols: ON/OFF, 0/1-10V, PUSH, DALI 2 110-240V, Mains Dimming, Casambi

- Light temperature: 3000K - 1850 lm

- Available beams:

• Spot 11°
• Medium 20°
• Flood 42°

- Power supply: Not included

- Dimensions: 103xØ60x95 mm

- Weight: 0.30 kg

Versions are available on request only:

- High Performance Spot 21° (2193 lm)

- High Performance Medium 27° (2193 lm)

- High Performance Flood 34° (2193 lm)
