Flos Spot Module Pro Led Array 18W for Light Cut Mini

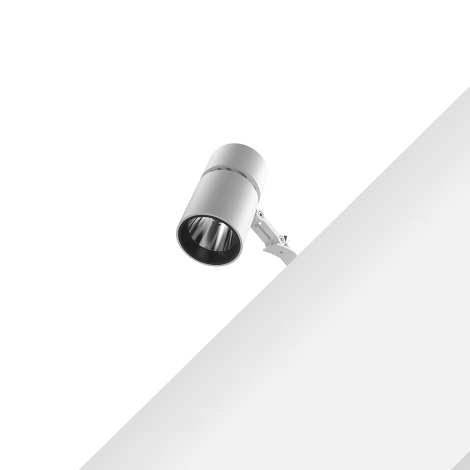

Flos Spot Module Pro LED Array 18W is the spotlight designed for the Light Cut Mini system by Flos Architectural, engineered for installation within the extruded aluminium profiles of the Light Cut Mini system, compatible with the Perimetral, 70 mm Channel and 140 mm Channel configurations. The compact aluminium body, measuring 103×Ø60×95 mm, houses an 18W LED Array light source at a constant current of 500mA, with a colour temperature of 3000K (warm white) and a CRI90 colour rendering index, ensuring faithful and natural colour reproduction. The design features essential geometries and a discreet profile, available in white or black finishes.

Thanks to its versatility, the Spot Module Pro LED Array is ideally suited to residential and contract environments, from the living room to office spaces where light quality and beam precision make all the difference. The spotlight is adjustable with a rotation of 350° on the horizontal axis and 180° on the vertical axis, offering maximum directional flexibility. Three optical beams are available: Spot 11°, for focused accent lighting; Medium 20°, for a balance between precision and spread; and Flood 42°, for broader and more uniform illumination, with a luminous flux of 1850 lm. The luminaire is dimmable with an appropriate driver (not included) and supports ON/OFF, 0/1-10V, PUSH, DALI 2 110-240V, Mains Dimming and Casambi protocols, enabling advanced dimming control. The remote constant current power supply is not included. The protection rating is IP20, suitable for indoor use, and the insulation class is Class III, with an input voltage of 220-240V.

High Performance versions are available on request, with optimised optical beams: High Performance Spot 21°, High Performance Medium 27° and High Performance Flood 34°, all delivering a luminous flux of 2193 lm, for applications requiring superior light output.
