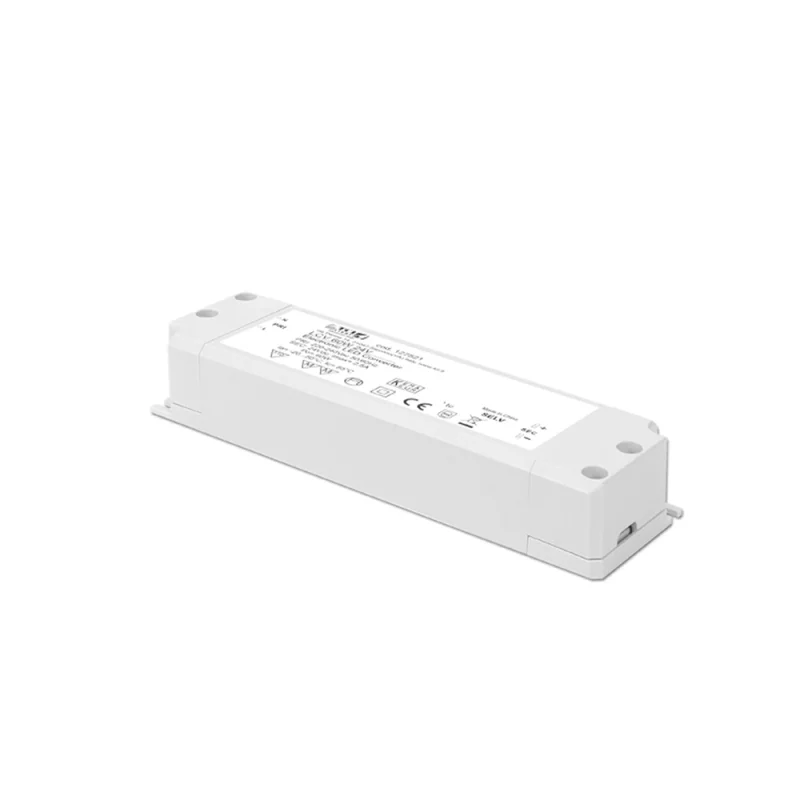

Flos Remote Power Supply Non Dimmable 24V 60W 220/240V

The Flos non-dimmable remote power supply 24V 60W is an electronic driver manufactured by TCI, designed to power LED strips and LED modules with stable direct current. Delivering a constant output of 24V DC at up to 60W, this power supply is the ideal solution for indoor LED lighting installations.

Thanks to its remote architecture and compact design, the TCI driver integrates seamlessly into Flos lighting systems, ensuring reliable performance with an efficiency exceeding 90%, reducing energy consumption and extending the lifespan of the installation.

Main technical specifications

The power supply accepts an input voltage of 220-240V AC and delivers a 24V DC output with a power range from 3 to 60W. The protection rating is IP20, suitable for indoor use only. Opposing input and output terminals support cable sections up to 2.5 mm² (AWG13), and cable clamps on both primary and secondary sides are compatible with cables ranging from 3 mm to 8 mm in diameter. Efficiency is rated above 90%.

Safety and protections

The unit is rated Insulation Class II, providing protection against electric shock for both direct and indirect contact. It features thermal protection rated C.5.e., as well as short circuit protection, overload protection, and protection against mains overvoltages.

Applications

Ideal for powering 24V LED strips, LED modules, and linear lighting systems in residential and contract environments, particularly where a concealed remote driver and clean cable management are required. Connecting cable is not included.

For detailed technical information, dimensional specifications, and wiring diagrams, please refer to the attached technical PDF.
