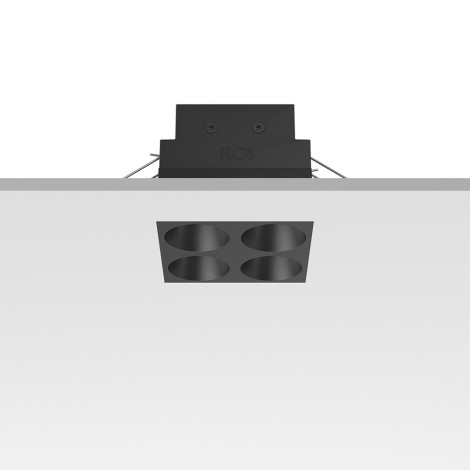

Light Shadow Fixed No Trim 4 Square - High brightness LED recessed spotlight, for indoor environments. Fixed optic, without frame. Remote power supply included (100-240V). The pre-installation frame is required, to be ordered separately.
Light Shadow is a revolution in low glare lighting. A patented and unique optical solution that achieves extreme cutting angles, without sacrificing efficiency. Its technology provides a 45-degree cut-off, and maximum integration with architectural elements is combined with a defined and impeccable light beam and total screening, characteristics that allow it to be placed in an almost zenith position without generating glare. Light Shadow is a spotlight with extra compact dimensions that allow recessed integration even in the event of minimum space available. The NO TRIM version has been designed for installation on 12.5 mm thick plasterboard panels.
The Fixed No Trim 4 Spots Square model is complete with a dimmable LED module with DALI technology. It has a power of 10.8W and it is possible to choose the light temperature between 2700K (1080 lm) or 3000K (1140 lm). The optic is fixed with a Medium beam of 22°. Remote power is included. Requires a mandatory pre-installation frame, not included (see Accessories).
Light source: LED DC 900mA 10.8W
Light temperature: 2700K / 3000K
Luminous flux: 1080 lm / 1140 lm
Dimmable - Dali
Optic type: Medium 22°
For indoor: IP55
Width: 70x70 mm
Height: 61 mm
Recessed hole: 102 x 86 mm
The NON DIMMABLE and Mains Dimming versions are available only on request.
