Flos Light Shadow Adjustable No Trim 4 LED 10W 22° DALI

Select Color
Select Light color tone
£304.04 Save 8%
£330.47
The product can be ordered

More buy more save

For 5 products spend per unit
For 10 products spend per unit

Light Shadow Adjustable No Trim 4 - High brightness LED recessed spotlight for indoor environments. Directional optics, 4 spots without frame. Remote power supply included (100-240V). The pre-installation frame is required, to be ordered separately.

Read more ... arrow_drop_down
local_shipping
Shipped in 3-4 working weeks
More information about shipping

Quantity

Description

Light Shadow is a revolution in low glare lighting. A patented and unique optical solution that achieves extreme cutting angles, without sacrificing efficiency. Its technology provides a 45-degree cut-off and maximum integration with architectural elements is combined with a defined and impeccable light beam and total screening, characteristics that allow it to be placed in an almost zenith position without generating glare. Light Shadow is a spotlight with extra compact dimensions that allow recessed integration even in the event of minimum space available. The NO TRIM version has been designed for installation on plasterboard panels with a maximum thickness of 12.5 mm.

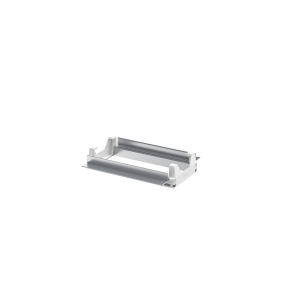

The Adjustable No Trim 4 Spots model is complete with a dimmable LED module with DALI technology. It has a power of 10.8W and it is possible to choose the light temperature between 2700K (1080 lm) or 3000K (1140 lm). The optics can be adjusted and has a Medium beam of 22°. Remote power is included. Requires a pre-installation frame, not included (see Accessories).

  • Light source: LED DC 900mA 10.8W
  • Integrated LED
  • Light temperature: 2700K / 3000K
  • Luminous flux: 1080 lm / 1140 lm
  • Dimmable - Dali
  • Driver included
  • Optic type: Medium 22°
  • Adjustable
  • Without frame
  • Emission: Direct
  • For indoor: IP20

Dimensions

  • Width: 149 mm
  • Height: 55 mm
  • Depth: 60 mm
  • Recessed hole: 75 x 163 mm

The NON DIMMABLE and Mains Dimming versions are available only on request.

Flos Architectural
Guaranteed Original Product

Data sheet

mpn
03.9431.14ADA
Reference
03.9431.14ADA
Input voltage
100-240 V
Depth in mm
60
Width in mm
149
Degree of protection
IP20
Material
Aluminum
Light source
LED
Adjustable power
with DALI system
Watt power
10 W
Number of light sources
4
Beam angle
22°
Mounting diameter in mm
75x163
Driver power supply
With driver
Color rendering index
CRI90
Optics
Adjustable
Light Emission
Direct
Download
picture_as_pdf Scheda tecnica
Warranty verified 2-year warranty from date of purchase
