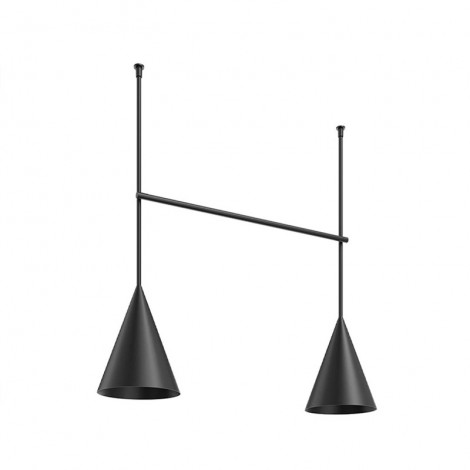

Flos infra-structure episode 2 C7 Linear and Conical Ceiling LED Module

Flos Infra-Structure Episode 2 C7 is a linear and conical ceiling LED module by Flos, designed as part of a modular, three-dimensional system built from extruded aluminum elements powered at 48V. The C7 configuration combines a 30W indirect linear element with two conical direct-light modules rated at 30W + 40W, delivering a total power of 100W and a dual emission that blends accent and ambient lighting. The LED source produces a 2700K warm white tone with a CRI90 colour rendering index, ensuring accurate and flattering light quality.

With its three-dimensional architecture and 360° rotatable modules, Infra-Structure Episode 2 C7 is ideal for high-impact residential and commercial settings, from the living room to double-height spaces. The system is fully dimmable and compatible with DALI, 1-10V, and FLOS Control powered by Casambi protocols, allowing precise and flexible control. Measuring 1519 × 1200 mm with a 300 mm diameter, IP20 rated and Insulation Class III, it is suitable for installation on normally flammable surfaces. The remote 48V power supply is not included and must be ordered separately.
