Flos INFRA-STRUCTURE EPISODE 2_ C7 Linear and Conical Ceiling LED Module By Vincent Van Duysen

03.8467.14

Vincent Van Duysen
instead of $2,062.86
$1,774.06 Save 14%
The product can be ordered

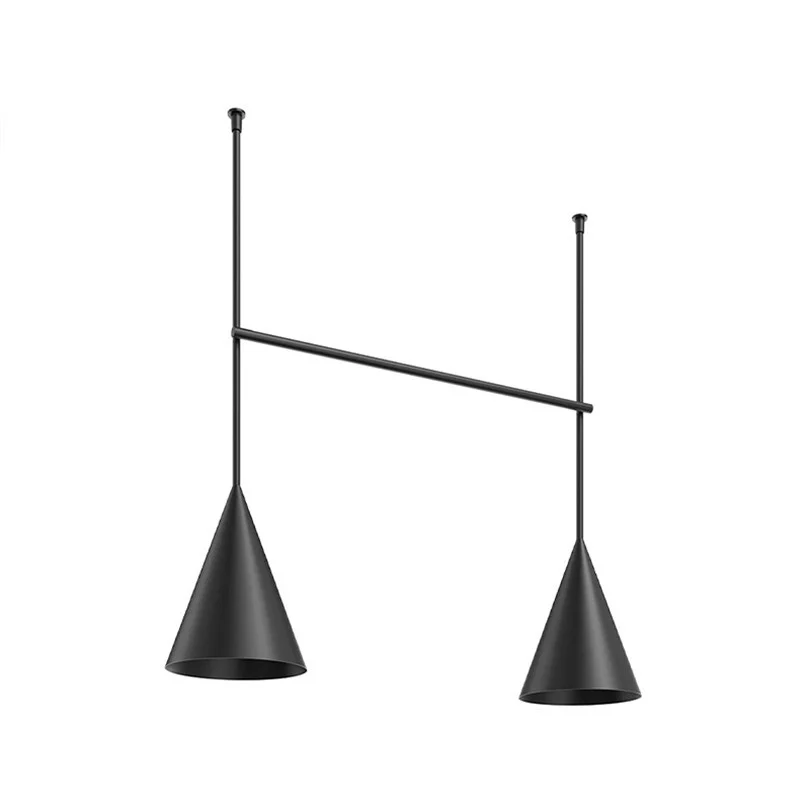

Flos INFRA-STRUCTURE EPISODE 2 in the C7 version double emission ceiling chandelier, complete with linear 30W indirect light LED and 2 conical 30W + 30W direct light LEDs with warm 2700K tone and a luminous flux of 2650 + 2366 lumens. Designed by Vincent Van Duysen in 2020 available in black and matt white colors. Possibility to adjust the light intensity through one of the following systems: Push, 0-10V and Dali, FLOS Control. 48Volt input voltage. Designed with high efficiency opal diffusers that allow a uniform downward and upward distribution ensuring high visual comfort. With special hooks that make it particularly easy to install.

Color
Quantity
Coming from supplier, shipping in 7-21 days
0 Item

You can pay in installments with PAYPAL OR SCALAPAY
Description
Tech specs pdf
Product Information:

The reinterpretation of an icon: the unique design of Infra-Structure evolves thanks to a new, extremely simplified modular concept.
The subtle but visually stunning elements can be combined to characterize any architectural space with a strong stage presence. Subtle, incredibly versatile tubular structure. Thanks to a special connection system, it is possible to combine vertical and horizontal elements to create three-dimensional combinations in infinite variations using linear and geometric modules. The mechanical connection between the individual modules that make up the structure is made through a screw system that guarantees a fast and safe installation. Each module is locked in place by integrating two small, almost invisible grub screws once the installation is complete. The electrical connections of the lighting modules are extremely simple to make. Each lighting element is completed by a long 4 m electrical cable equipped with an output micro connector. The cable runs through all the different sections of the vertical structure and is then connected to the grid in the ceiling.
All structural components are made of extruded aluminium tubular profiles painted black or white with 48V feeding.
The system can be controlled as a group (DALI, 1-10V, FLOS Control) through remote power supply units with broadcast control or individual control by means of one single driver for each lighting module. The family is made of lighting modules for general lighting featuring different optics and linear lighting modules providing diffused direct or indirect emission.

Configuration
The extreme simplicity of the elements and the speed with which they can be combined allows to free up the creativity of the project and to achieve innumerable combinations. As in a three-dimensional network, simply define the vertical axes of the structure and then connect them visually (and electrically) with lighting modules that can freely rotate 360º. An incredible installation flexibility is guaranteed.

Control
- Lighting modules are compatible with DALI, 1-10V and Casambi.
- For 1-10V management, the control system must be active, and the data bus must be connected directly to the controller. In case of individual control one dimmable driver for each lighting unit or group is required.
- To manage the Casambi system a Casambi interface module must be ordered and connected to a DALIor 1-10V driver. To manage the system it is necessary to download the FLOS Control powered by Casambi app (available on Apple Store and Google Play).

Optic system
- Light Tube Direct / Light Tube Indirect / Light Tube Covered / Suspension Panel 600: diffused lighting direct.
- Light Tube Indirect: diffused lighting indirect.
- Suspension Cone 300 / Suspension Cone 400: direct Flood lighting.

Power Supply
Remote 48V power supply not included.
IP20 protection grade.
Suitable for installation on normally inflammable surfaces.
EN60598-1 European and USA (UL) Technical Standards and any subsequent additions.

product accessories

Flos INFRA-STRUCTURE EPISODE 2 in the C7 version double emission ceiling chandelier, complete with linear 30W indirect light LED and 2 conical 30W + 30W direct light LEDs with warm 2700K tone and a luminous flux of 2650 + 2366 lumens. Designed by Vincent Van Duysen in 2020 available in black and matt white colors. Possibility to adjust the light intensity through one of the following systems: Push, 0-10V and Dali, FLOS Control. 48Volt input voltage. Designed with high efficiency opal diffusers that allow a uniform downward and upward distribution ensuring high visual comfort. With special hooks that make it particularly easy to install.

The reinterpretation of an icon: the unique design of Infra-Structure evolves thanks to a new, extremely simplified modular concept.
The subtle but visually stunning elements can be combined to characterize any architectural space with a strong stage presence. Subtle, incredibly versatile tubular structure. Thanks to a special connection system, it is possible to combine vertical and horizontal elements to create three-dimensional combinations in infinite variations using linear and geometric modules. The mechanical connection between the individual modules that make up the structure is made through a screw system that guarantees a fast and safe installation. Each module is locked in place by integrating two small, almost invisible grub screws once the installation is complete. The electrical connections of the lighting modules are extremely simple to make. Each lighting element is completed by a long 4 m electrical cable equipped with an output micro connector. The cable runs through all the different sections of the vertical structure and is then connected to the grid in the ceiling.
All structural components are made of extruded aluminium tubular profiles painted black or white with 48V feeding.
The system can be controlled as a group (DALI, 1-10V, FLOS Control) through remote power supply units with broadcast control or individual control by means of one single driver for each lighting module. The family is made of lighting modules for general lighting featuring different optics and linear lighting modules providing diffused direct or indirect emission.

Configuration
The extreme simplicity of the elements and the speed with which they can be combined allows to free up the creativity of the project and to achieve innumerable combinations. As in a three-dimensional network, simply define the vertical axes of the structure and then connect them visually (and electrically) with lighting modules that can freely rotate 360º. An incredible installation flexibility is guaranteed.

Control
- Lighting modules are compatible with DALI, 1-10V and Casambi.
- For 1-10V management, the control system must be active, and the data bus must be connected directly to the controller. In case of individual control one dimmable driver for each lighting unit or group is required.
- To manage the Casambi system a Casambi interface module must be ordered and connected to a DALIor 1-10V driver. To manage the system it is necessary to download the FLOS Control powered by Casambi app (available on Apple Store and Google Play).

Optic system
- Light Tube Direct / Light Tube Indirect / Light Tube Covered / Suspension Panel 600: diffused lighting direct.
- Light Tube Indirect: diffused lighting indirect.
- Suspension Cone 300 / Suspension Cone 400: direct Flood lighting.

Power Supply
Remote 48V power supply not included.
IP20 protection grade.
Suitable for installation on normally inflammable surfaces.
EN60598-1 European and USA (UL) Technical Standards and any subsequent additions.

Product Details
100% original product by :

Data sheet

ean13
8056585222056
mpn
03.8467.14
Reference
03.8467.14
Output voltage
48V

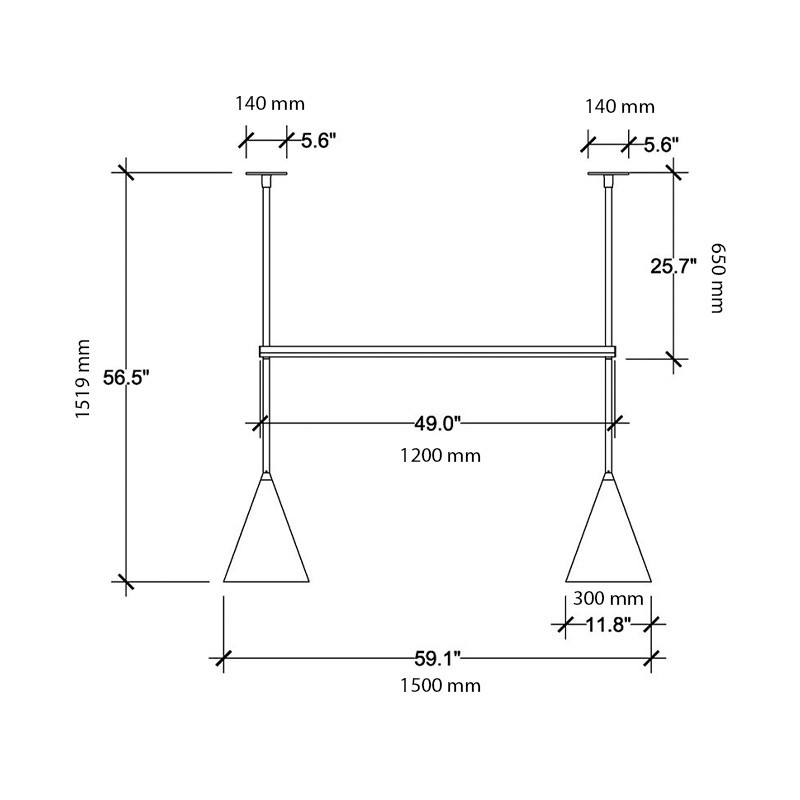

Width in mm
1200
Length in mm
1519
Diameter in mm
300
Degree of protection
IP20
Energy efficiency class
A+ Class
Material
Aluminum
Light source
LED
Adjustable power
Dimmable
Watt power
30W+30W+40W
Luminous efficacy in lumens
3195 + 2366
Light Temperature
2700 K Warm White
Weight in Kg
10,5
Insulation class
Insulation class III
USA JAP compatible
Compatible
Color rendering index
CRI90
