The unique design of Infra-Structure evolves thanks to a new, extremely simplified modular concept. The subtle but visually stunning elements can be combined to characterize any architectural space with a strong stage presence. Subtle, incredibly versatile tubular structure. Thanks to a special connection system, it is possible to combine vertical and horizontal elements to create three-dimensional combinations in infinite variations using linear and geometric modules. The mechanical connection between the individual modules that make up the structure is made through a screw system that guarantees a fast and safe installation. Each module is locked in place by integrating two small, almost invisible grub screws once the installation is complete. The electrical connections of the lighting modules are extremely simple to make. Each lighting element is completed by a long 4 m electrical cable equipped with an output micro connector. The cable runs through all the different sections of the vertical structure and is then connected to the grid in the ceiling. All structural components are made of extruded aluminium tubular profiles painted black or white with 48V feeding. The system can be controlled as a group (DALI, 1-10V, FLOS Control) through remote power supply units with broadcast control or individual control by means of one single driver for each lighting module. The family is made of lighting modules for general lighting featuring different optics and linear lighting modules providing diffused direct or indirect emission.

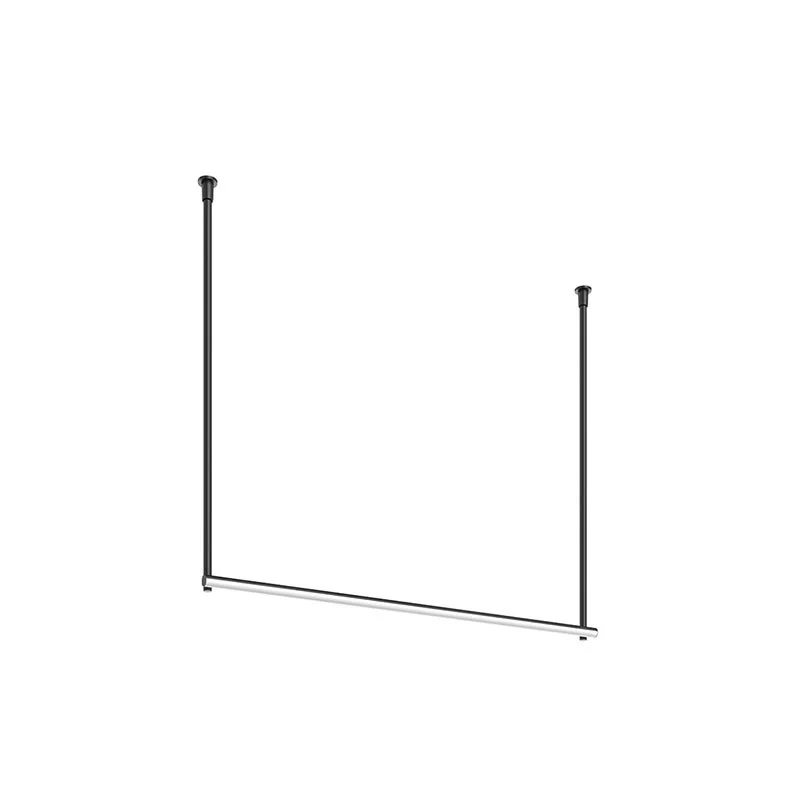

Designed by Vincent Van Duysen in 2020 available in matt black and white colors. Possibility to adjust the light intensity through one of the following systems: Push, 0-10V and Dali, FLOS Control. 48Volt input voltage. Designed with a high efficiency opal diffuser that allows uniform downward distribution ensuring high visual comfort and with a special hook that makes it particularly easy to install in the structure.

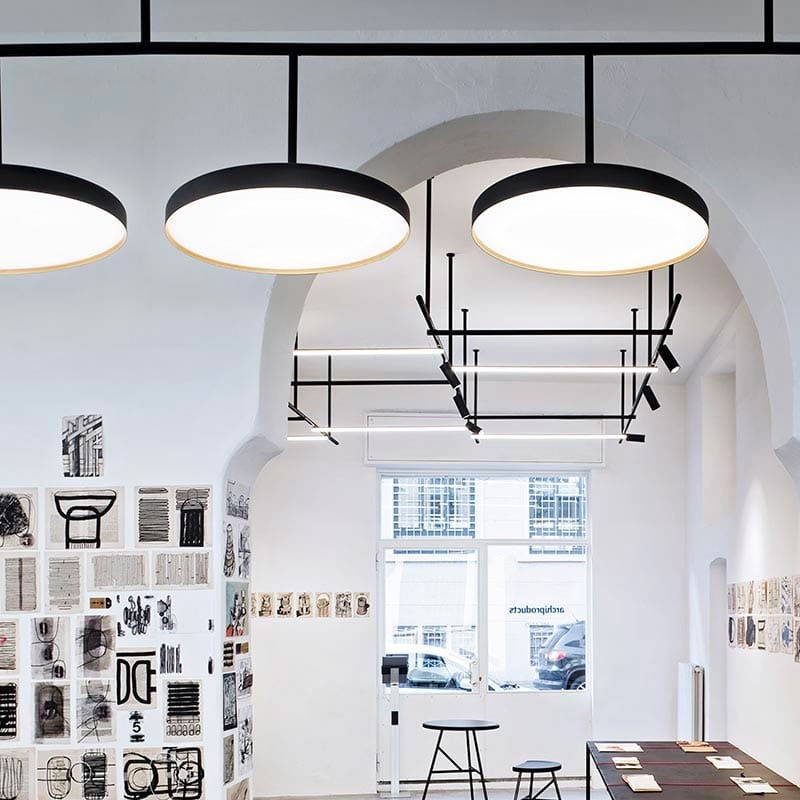

The extreme simplicity of the elements and the speed with which they can be combined allows to free up the creativity of the project and to achieve innumerable combinations. As in a three-dimensional network, simply define the vertical axes of the structure and then connect them visually (and electrically) with lighting modules that can freely rotate 360º. An incredible installation flexibility is guaranteed.
- Lighting modules are compatible with DALI, 1-10V and Casambi. - For 1-10V management, the control system must be active, and the data bus must be connected directly to the controller. In case of individual control one dimmable driver for each lighting unit or group is required. - To manage the Casambi system a Casambi interface module must be ordered and connected to a DALIor 1-10V driver. To manage the system it is necessary to download the FLOS Control powered by Casambi app (available on Apple Store and Google Play).
Remote 48V power supply not included. IP20 protection grade. Suitable for installation on normally inflammable surfaces. EN60598-1 European and USA (UL) Technical Standards and any subsequent additions.
LED Dimmer Dali single-channel allows a LED intensity adjustment of the light by means of a bus command (DALI) or of a push-button (normally open command) in the event of absence of a bus command. The supply voltage is 12 to 48V DC. Voltage output (CV). For LED strip and spots.
Mean Well model HLG-150H-48A power supply unit with power of 153.6W from 3.2A constant voltage of 48Volt. Degree of protection IP65 suitable for indoor and outdoor use. Dimmer function Io and Vo adjustable through built-in potentiometer.
Mean Well power supply unit version ELG-150-48DA-3Y with power of 150.2W from 3.13A constant voltage of 48Volt. Degree of protection IP67 suitable for indoor and outdoor use. Dimmer function for regulating the light via the DALI system.
