C1 Mono Spot Ceiling Large D. 56 - Optic Medium, adjustable LED ceiling spotlight, for indoor use. Available in 5 different finishes. Installation accessories NOT included (see description for details).
Driver and wall mount are NOT included. They must be ordered separately for correct installation of the appliance.

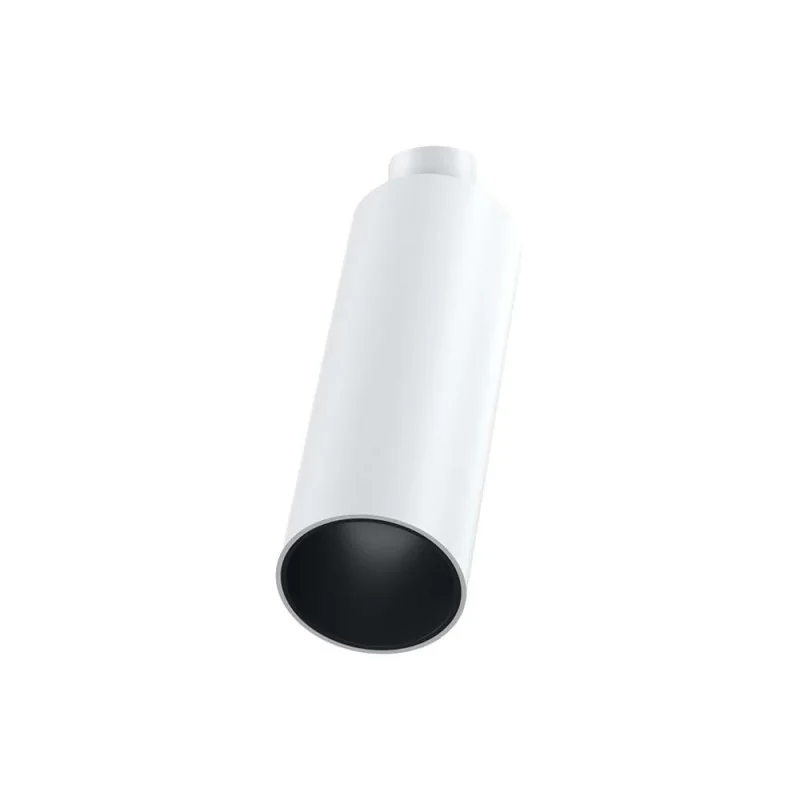

C1 Mono Spot Ceiling Large is an indoor LED spotlight, suitable for ceiling installation. The body of the product can be extracted from the installation surface and oriented 60° on the vertical axis and 355° on the horizontal axis. The simplicity of the cylinder hides an intelligent mechanism that allows to obtain an incredible flexibility of the lighting body. The optical unit set back inside the body hides the light source from view, controlling the direct luminance for a total comfort effect. C1 is suitable for all types of environments both contract (hotels, restaurants, shops, offices) and domestic.
All luminaires must be powered with a remote driver NOT included, available with various control alternatives: 0 / 1-10V, DALI, Push Dimming and Casambi. Control system in broadcast mode.
Light source: DC LED 950mA - 11W - 1050Lm / 1200mA - 14W - 1300Lm (integrated)
Light temperature: 3000K (warm light)
Luminous flux: 1050 / 1300 Lm
Optic type: Medium - 23°
Type of lighting: Direct and Diffused
DIMMABLE (Driver excluded)
Power source: Excluded
Available colors: White, Anthracite, Brushed Copper, Brushed Steel, Brushed Bronze
Diameter: D. 56 mm
Height: 157 mm
Ceiling attack: 22 mm

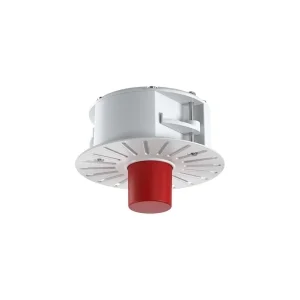

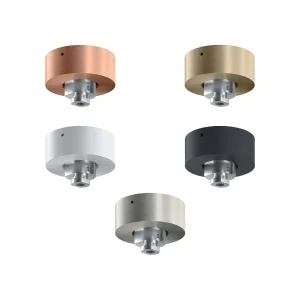

- For SURFACE INSTALLATION it is necessary to order the aluminum support. If you want to install it recessed, instead you need the NO-TRIM FRAME, compatible only with plasterboard surfaces. Both accessories can be ordered separately (see Installation Accessories).
-C1 Mono Spot Ceiling Large is available in the version with 2700K light temperature, and in the versions with Spot optic (15°), Flood optic (34°) or Wide Flood optic (45°) ON REQUEST.
Electronic power supply adjustable in constant current from 350mA to 1.05A. Multipower supply equipped with dip-switch with the selection of the output current. IP20 independent power supply, for indoor use. Possibility to adjust the light intensity through the DALI, 0-10V, 1-10V or Push system. Nominal voltage 110-127V or 220-240V. Dimensions...
