- Strip led 220V
Strip LED COB 5M 14W/m 220V IP65 Dimmable Light color tone-3000°K WARM LIGHTAvailable in different variantslei430.22 lei301.15- On sale!
- -30%
Lampo Strip LED 5050 60led/m 24V 14.4W/mt Reel 5M 72W Light color tone-3000°K WARM LIGHT, Version-IP20 For IndoorAvailable in different variantslei244.94 lei146.97- On sale!
- -40%
Alcapower Strip LED Snake Flex profile 11W/m 220V IP65 Dimmable Light color tone-3000°K WARM LIGHT, Lunghezza-5 metersAvailable in different variantslei738.59 lei517.02- On sale!
- -30%
- add remove
- add remove
- add remove
- Strip led 220V Strip LED COB 5M 14W/m 220V IP65 Dimmable Light color tone-3000°K WARM LIGHTAvailable in different variantslei430.22 lei301.15
- On sale!
- -30%
Lampo Strip LED 5050 60led/m 24V 14.4W/mt Reel 5M 72W Light color tone-3000°K WARM LIGHT, Version-IP20 For IndoorAvailable in different variantslei244.94 lei146.97- On sale!
- -40%
Alcapower Strip LED Snake Flex profile 11W/m 220V IP65 Dimmable Light color tone-3000°K WARM LIGHT, Lunghezza-5 metersAvailable in different variantslei738.59 lei517.02- On sale!
- -30%
- add remove
Reference: A40LVB35000N
Converter from constant voltage 24V to constant current 350mA. For dimmable COB LED modules. Dimensions: 50 x 48 x 11 mm.
Reference: A40LVB25000N
Converter from constant voltage 24V to constant current 250mA. For dimmable COB LED modules. Dimensions: 50 x 48 x 11 mm.

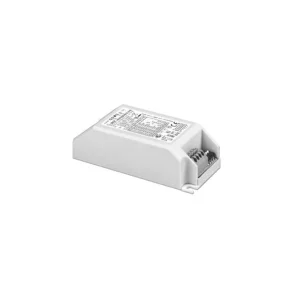

Reference: 127482
Mini electronic ballast with DIP-SWITCH in direct current of (12W 250mA) (15W 300mA) (17W 350mA) (20W 400mA) (22W 450mA) (25W 500mA) (27W 550mA) (30W 600 mA) (32W 650 mA ) (34W 700mA). Rated input voltage 220-240V. Power supply with ten year warranty.
Reference: DRDSPFM20500
DR DS-PFM-20/220-240/500 power supply for miniaturized led in constant current from 250mA-350mA-450mA-500mA and 20W.
Reference: A40LVQ00000N
Constant voltage converter (12V or 24V) at 700mA constant current. For power LED modules. Dimensions: 51 x 32 x 18 mm. For 1 to 3/6 * led modules. * Input 11-15V max 3 Led - Input 22-24V max 6 Led
Reference: A40LVL00000N
Constant voltage converter (12V or 24V) at 500mA constant current. For power LED modules. Dimensions: 51 x 32 x 18 mm. For 1 to 3/6 * led modules. * Input 11-15V max 3 Led - Input 22-24V max 6 Led
Reference: A40LVP00000N
Constant voltage converter (12V or 24V) at 350mA constant current. For power LED modules. Dimensions: 51 x 32 x 18 mm. For 1 to 3/6 * led modules. * Input 11-15V max 3 Led - Input 22-24V max 6 Led
Reference: 99181
iLed for Linea Light Aqualed power supply unit for 3-6 constant current modules for LEDs of 500mA 9W MAX. Nominal output voltage DC (under load) 9-20V.
Reference: 99185
iLed for Linea Light Aqualed power supply unit for 6-12 constant current modules for LEDs of 500mA 20W MAX. Nominal output voltage DC (under load) 17-40V.
Reference: 127120
Electronic power supply adjustable in direct current. 36W max DC power supply 900mA output.
Reference: 122792
TCI DC BMU power supply with 12W output power and 700 mA constant current, 100-240 Volt input voltage.

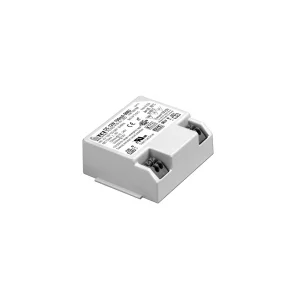

Reference: 122796
TCI DC BMU power supply with 6.5W output power and 210 mA constant current, 100-240 Volt input voltage.
Constant current power supplies
Diffusione luce offers for sale a complete range of constant current electronic power supplies for LED applications. To choose the right constant current power supply it is necessary to carry out this calculation: current absorbed by the LED spotlight x working voltage of the spotlight. Example: 0.350 A x 3.4 volts = 1.2 W (power absorbed by the spotlight). In this case, you must choose a power supply with an output power starting from 1.2W and a current of 0.350 A. Do not install power supplies with a minimum output power higher than the nominal power absorbed by the installed spotlight, for example: 1.2W and 350mA spotlight with power supply starting from 4w and 350mA -> wrong and broken LED diode. Different matter when LED spotlights are installed in series, in this case to calculate the power of the power supply it is necessary to add the power of the spotlights, example: 10 products of 1.2w and 350 mA = 12w 350mA -> necessary power supply with nominal power minimum 12w 350mA. Meanwell electronic ballasts with IP65/IP67 protection ratings are also available for outdoor applications.
