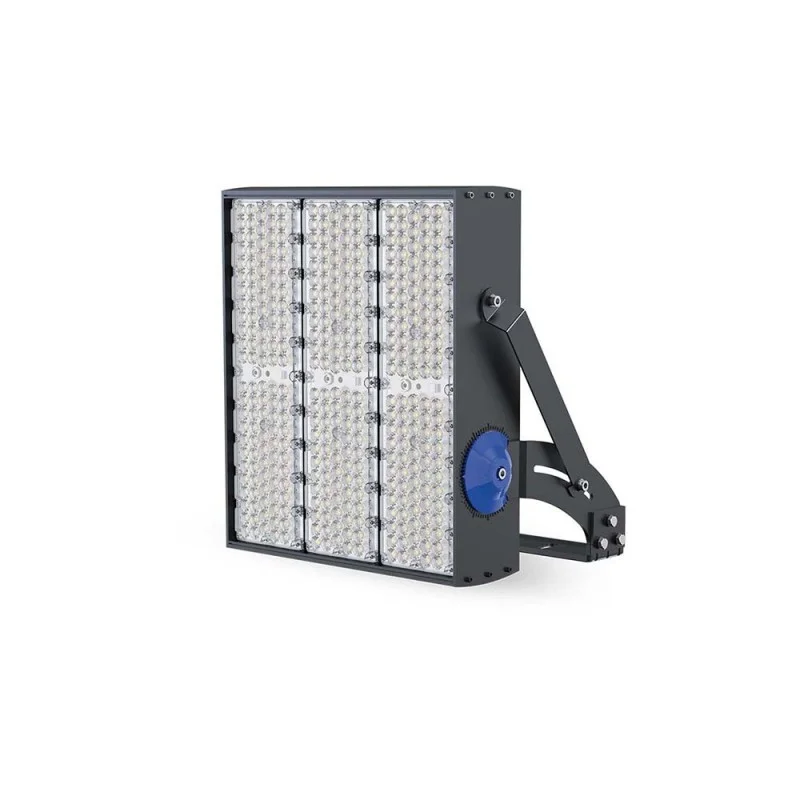

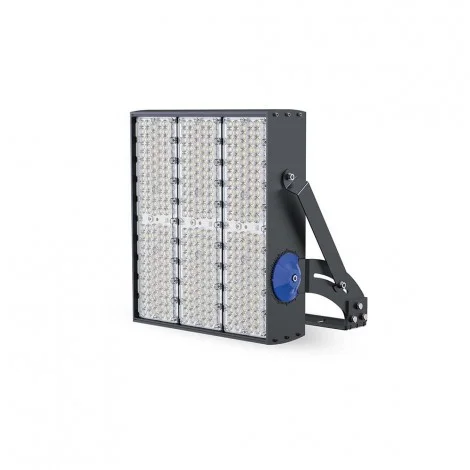

Big High Brightness Outdoor IP66 LED 705W Floodlight for Sports Facilities

Product Information:

BIG128000 is a high performance outdoor floodlight, with a multi-chip optical system to improve light distribution and ensure high efficiency and reliability. The body of the projector has improved aerodynamic resistance, passivated and painted with epoxy paints that guarantee high resistance to chemical and physical agents, and bolts made of stainless steel. It has a protractor system for a precise adjustment of the light beam. Suitable for floor, ceiling, wall and pole installations.

FEATURES

- Reliable and resistant

- High efficiency. High performance system with maximized efficiency to ensure low running costs with high reliability.

- Also ideal for environments where photos and videos are taken. More stable images, less eye strain.

- Multi-chip optical system. To ensure a controlled distribution of the light beam and high efficiency.

- Low aerodynamic resistance. Careful precautions make the product less sensitive to air flows.

- Suitable for approved sports facilities (F.I.G.C. - F.I.T. - F.I.N. - F.I.P.). Football fields, tennis courts, stadiums, athletics tracks, skating rinks, etc.

- Reliability. Up to 7 years warranty.

TECHNICAL SPECIFICATIONS

• Materials:  Aluminum, stainless steel
• Source:  LED 705W - 230V
• No. of light sources:  360
• NOT Dimmable
• For outdoor IP66
• Cable:  1500 mm 3x1.00 neoprene
• Cable gland:  Brass
• Recyclability:  95%
• Mounting Bracket:  Included
• Dimensions:  450x190x550

SYMMETRIC VERSIONS

• 3000K - 20°/40°/60° (121895 Lm)
• 4000K - 20°/40°/60° (128310 Lm)
• 5500K - 20°/40°/60° (134726 Lm)

ASYMMETRIC VERSIONS

• 3000K - 151° x 80° (121895 Lm)
• 4000K - 151° x 80° (128310 Lm)
• 5500K - 151° x 80° (134726 Lm)

NOTE: The DALI Dimmable and 1-10V Dimmable versions are available only on request, with a surcharge of ‚¬150+iva.
