BEGA Plug&Play Smart Tower 4 Outputs Central Switching 48V IP65

Product Information:

The BEGA Plug&Play base is the Smart Tower. This is the intelligent switching center of the system, which at the same time guarantees the required operating voltage of 48V. Thanks to the secure plug connections, up to 4 devices can be connected to the Smart Tower.

The Smart Extender extends the system by offering additional connection options for other devices. Flexible cables can be simply laid on the ground or between plants, avoiding the time-consuming and costly laying of ground cables. This means that new configurations and expansions can always be made, at any time and very quickly.

DESIGN OF A BEGA PLUG & PLAY SYSTEM

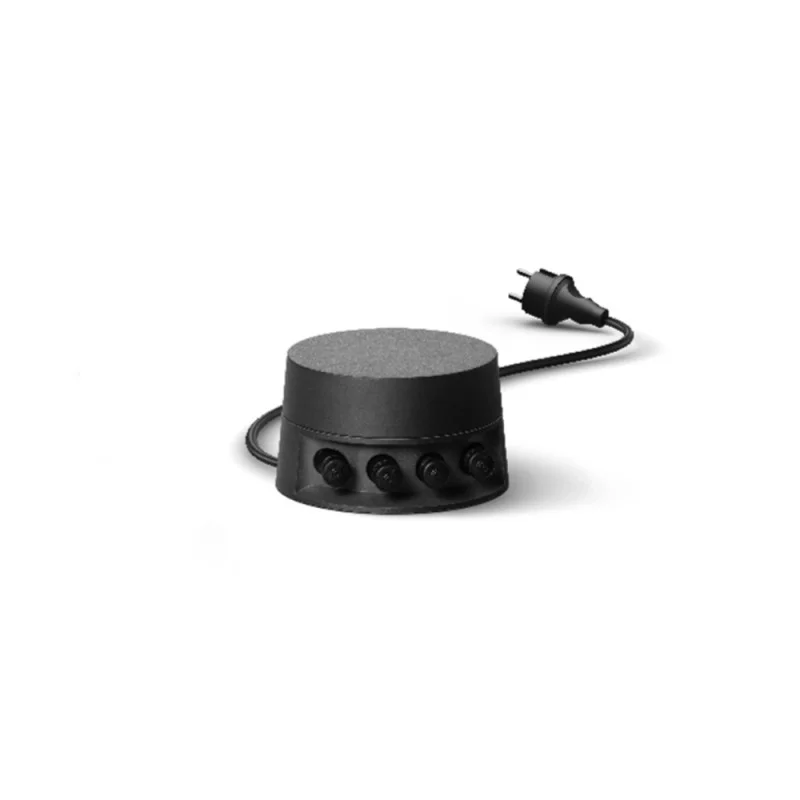

Smart Tower forms the intelligent switching center of the system and guarantees the safe operating voltage of 48V. It is supplied with a 5 meter long connection cable and connector to be connected to a 230V socket. Both devices and one to several Smart Extenders can be connected to the four plug-in outputs of the Smart Tower. The latter also have four plug-in contacts, which allow the system to be expanded with further connection possibilities. The maximum power of all appliances connected to a Smart Tower is 50W. If you want to connect other devices, the system can be expanded at any time with a Smart Extender.

- IP65 protection

- Armor and stake in fiberglass reinforced plastic

- Smart Tower: BEGA Ultimate Driver Zigbee 3.0 and Bluetooth

- Smart Tower: 230V AC / 48V DC. Max power 50 Watt

- Smart Tower and Smart Extender: 4 outputs each individually switchable and dimmable

- Graphite color

SMART TOWER - With 5 meter long connection cable and connector (IP65)

SMART EXTENDER - With 5 meter long cable and 48V connector (IP65)
