Ares Maxi Ada Applique Biemission Wall Lamp for outdoor

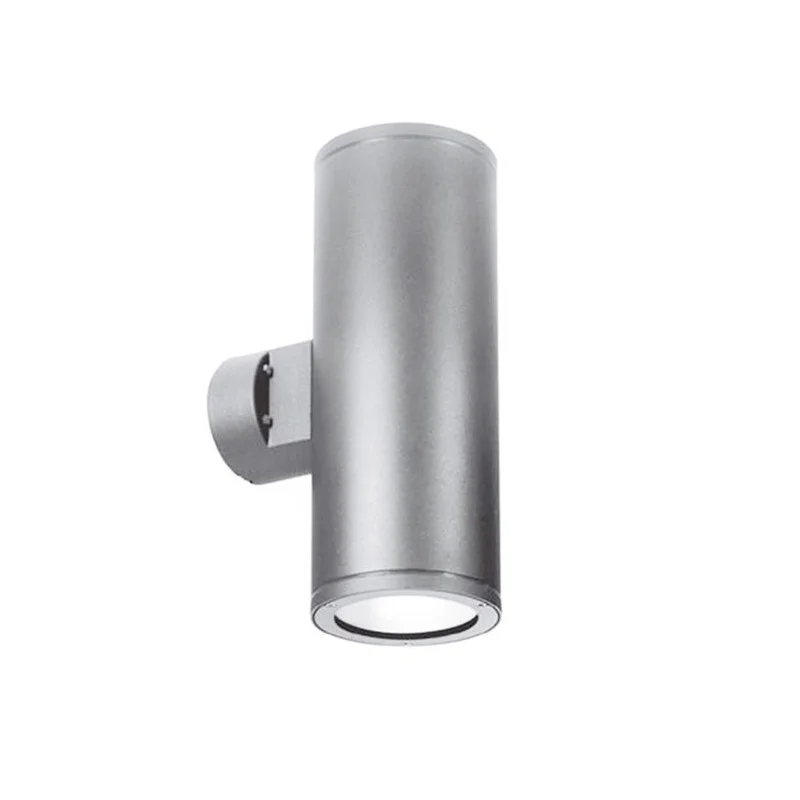

Ares Maxi Ada Outdoor Wall Lamp is a bi-emission wall-mounted luminaire manufactured by Ares, designed for the architectural lighting of vertical surfaces in demanding outdoor environments. The body is constructed from die-cast aluminium, phosphochromised and polyester powder coated in a silver finish, complete with a silicone gasket and tempered transparent glass diffuser for long-lasting weatherproof performance. With dimensions of 500 mm in length, 275 mm in width and 180 mm in diameter, the fixture offers a robust yet well-proportioned profile for wall installation.

Thanks to its bidirectional double emission with a narrow 16° beam angle, the Ares Maxi Ada is perfectly suited to highlighting porches, façades, columns and architectural vertical surfaces in outdoor spaces. The two G12 lamp holders, each rated at 70 W (2×70 W HIT metal halide), deliver powerful and focused illumination, powered at 220–240 V via an integrated driver. Wiring is routed through an M16 cable gland suitable for cables with a diameter of less than 10 mm, using flexible cables rated for outdoor use. IP65 protection, compliant with EN 60598-1 (Insulation Class I), ensures full resistance to weathering and atmospheric agents, making this luminaire a reliable choice for professional installations in exposed environments.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
