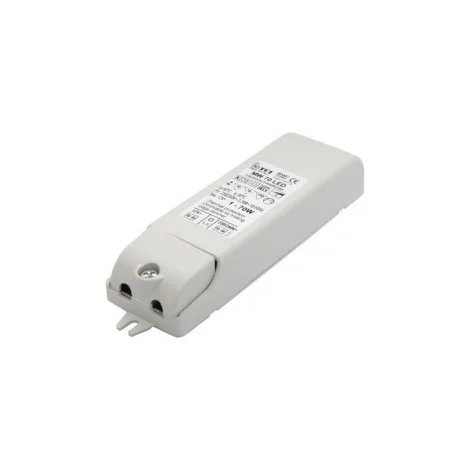

TCI MW 70 Dimmable TRAILING EDGE 12 V electronic transformer

Brand :

$30.89 Save 25%

$41.19

24 / 48 hours

More buy more save

For 5 products spend per unit

For 10 products spend per unit

Dimmable electronic transformer with 12 V with possibility of being regulated with IGBT for LED or halogen lamps.

payments Secure payment:

delivery_truck_speed Delivery Information:

Fast shipping within 24-48 hours for products marked "Shipped in 1-2 days."

back_to_tab Product returns:

Returns must be made within 30 days of the delivery date.

Description
Product Details

Description

IP20 independent transformer for lamps 12 Vac: 1 - 70 W halogen lamps; 1 - 50 W LED lamps.

Class II protection against electric shock for direct or indirect contact.
Complete with terminal cover and cable retainer.
Input and output terminal blocks on the same side (wire cross-section up to 0,5 - 2,5 mm2).
Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 6 mm.
Max. 18 mm cable peel-off.
The transformer can be secured with slot for screws.
Ultra compact size.

Protections:

against overheating and short circuits.
against mains voltage spikes.
against overloads.

Manufacturer : TCI

check_circle

In stock

In store we have 12 Items

Data sheet :

Barcode: 8010703460515
Reference: 119772
Input voltage: 220-240 V
Output voltage: 12V AC
Depth in mm: 21
Width in mm: 34
Length in mm: 107
Degree of protection: IP20
Material: Pvc
Adjustable power: Dimmable
Product Color: WHITE COLOR
Power output in watts: 70 w
Insulation class: Insulation class II

Download :

attach_file Download

Warranty :

2-year warranty from date of purchase
