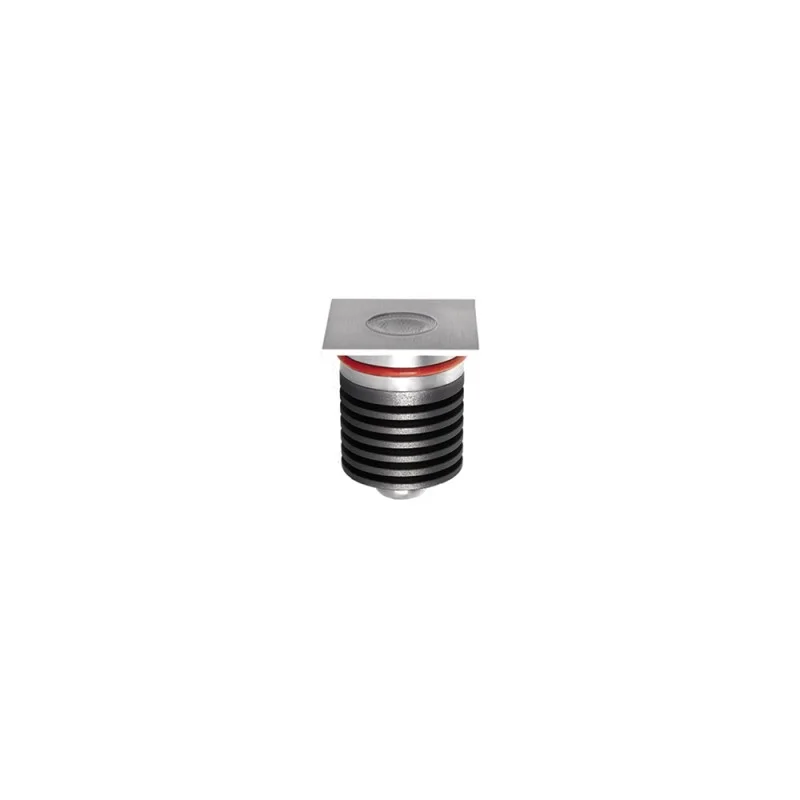

Playled Quadro3 Recessed 3W 12-24V led upight carriageable for outdoor

Playled Quadro3 is a recessed LED uplight for outdoor use from the Olar range by PLAYLED, engineered for in-ground installations in demanding outdoor environments. The body is crafted from EN AW 6063 alloy, machined via CNC processing with a passivation treatment, resulting in a compact fixture measuring 40×40×53 mm with a refined steel finish. The lens is made of high-thickness transparent tempered glass, ensuring both structural protection and optimal light transmission. The integrated 3W LED source, powered at 12-24V DC, requires no external driver and is dimmable, offering full voltage compatibility for EU, USA, UK, Australia and Japan electrical systems.

The Quadro3 carries an IP68 rating, making it suitable for fully submerged or buried installations, and is drive-over rated, capable of withstanding vehicular traffic. The formwork, measuring Ø37×90 mm, is included in the package, simplifying concrete-cast installation. The beam angle can be selected between 10°, 40° and 60°, allowing precise control over light distribution from a narrow spot to a wider flood effect. Three colour temperature options are available: 3000K warm white at 265 lumens, 4000K neutral white at 279 lumens and 6000K cool white at 292 lumens, all with a CRI greater than 80. These features make the Quadro3 an ideal choice for illuminating pathways, terraces, paved surfaces and outdoor design spaces where optical precision and weather resistance are essential requirements.
