Vorrei sapere le misure precise di ingombro perché purtroppo ho un cliente che ha già murato la carcassa ma non si sa la marca

Salve , come riporta la scheda tecnica foro incasso per cassaforma 45 mm , diametro corpo faretto 40 mm , lunghezza corpo 70 mm , diametro parte in vista 55 mm. Diffusione Luce srl

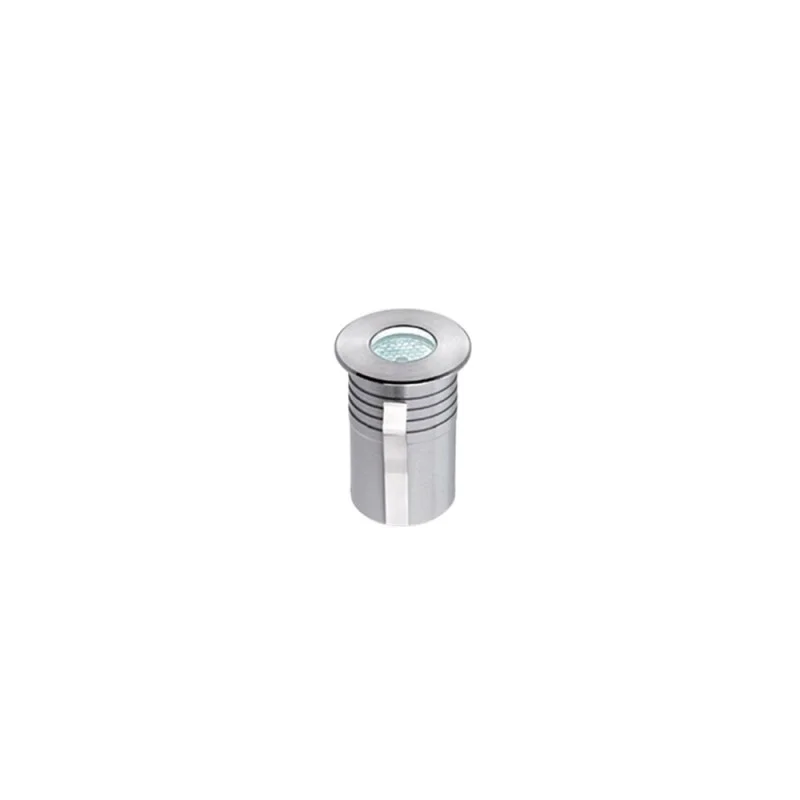

PAN NIP LED Recessed LED Spotlight Floor 2W 3000K IP67 Outdoor

PAN Nip LED 2W Round Recessed Floor Spotlight IP67

Brand :

SAR336.05 Save 20%

SAR420.06

The product can be ordered

Faretto da incasso 2W 24V per esterno IP67 in acciaio inox. Dimensioni: Ø55 x 82,5mm

payments Secure payment:

delivery_truck_speed Delivery Information:

Fast shipping within 24-48 hours for products marked "Shipped in 1-2 days."

back_to_tab Product returns:

Returns must be made within 30 days of the delivery date.

Description
Product Details

Description

Nip is a floor recessed luminaire ideal for outdoor lighting systems where white light effects are required. Made of die-cast aluminium, it is equipped with an AISI 316L steel front, particularly resistant to the high concentrations of iodine and chlorine in the air, typical of marine areas. The round-shaped steel ring is complete with flush-mounted transparent glass, so as to limit the deposit of earth and dust. Nip can be powered at 24V DC in the version with Power LED. It is supplied with a special PVC well with provision for 4-way lateral connection and a 1 meter pre-wired H05RN-F power cable.

Characteristics:

Material: Stainless steel
Finish: Steel
Voltage: 24V
Power: 2W
For outdoor IP67
Light color temperature: 3000K warm light
Light power: 160 lm
Optics: 30°
Formwork included: Ø160.4 x 155 x Ø47mm
Dimensions:Ø55 x 82.5mm

For more information, see the attached PDF

Manufacturer : PAN

cancel

Availability on order

Data sheet :

Barcode: 8024598051505
Reference: EST701
Input voltage: 24 VOLT DC
Length in mm: 82,5
Diameter in mm: 55
Degree of protection: IP67
Material: Stanless steel
Light source: LED
Watt power: 2 W
Light Temperature: 3000 K Warm white
Product Color: SILVER COLOR
Beam angle: 30°
Mounting diameter in mm: 47
Insulation class: Insulation class II
Carriageable: Yes
Formwork: Yes
Compatible voltage: EU-AUD-USA-UK-JAP
Color rendering index: CRI80

Download :

attach_file Download

Warranty :

2-year warranty from date of purchase
