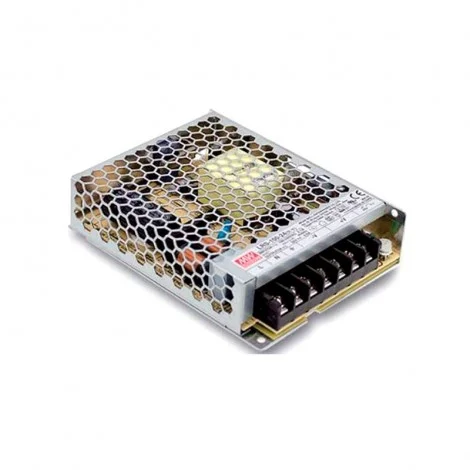

Meanwell Power Supply LRS-100-24 108W 24V 4.5A LED Constant
  • Meanwell Power Supply LRS-100-24 108W 24V 4.5A LED Constant

Meanwell Power Supply LRS-100-24 108W 24V 4.5A LED Constant Voltage Driver

$38.56
24 / 48 hours

More buy more save

For 10 products spend per unit

Mean Well LRS-100-24 constant voltage LED driver, 24V DC, 100W, 4.5A, 90% efficiency, dimmable and compatible with worldwide input voltages.

Read more ... arrow_drop_down
44 Items
local_shipping
Shipped in 1-2 days
More information about shipping

Quantity

Description

The Mean Well LRS-100-24 power supply is a constant voltage 24V DC LED driver rated at 100W, engineered to deliver high efficiency, long service life and outstanding reliability in professional lighting installations. With an output current of 4.5A and a declared efficiency of 90%, this compact driver is an ideal solution for 24V LED strip lights and architectural lighting systems.

Thanks to its universal input voltage range of 100-240V AC, the LRS-100-24 is fully compatible with the main global electrical standards — EU, USA, UK, Australia and Japan — making it perfectly suited for residential, commercial and international contract projects.

Key technical specifications

The unit delivers an adjustable output voltage between 21.8V and 28.8V DC, with a maximum output power of 100W. The aluminium enclosure ensures effective heat dissipation, while the compact dimensions — 129 x 97 x 30 mm — allow installation even in confined spaces. Screw terminal connections ensure fast and secure wiring. The built-in dimming function allows output power adjustment to suit any lighting design requirement.

Safety and protection features

The Mean Well LRS-100-24 incorporates a comprehensive protection system, including overload, overvoltage, overtemperature and short circuit protection, safeguarding both the driver and connected devices. Compliance with EN 61000-3-2 for harmonic distortion and EN 55022 Class B for electromagnetic compatibility ensures safe use in both residential and light industrial environments. The enclosure carries an IP20 protection rating.

Applications

This power supply is the ideal choice for driving 24V LED strips, architectural and decorative lighting systems, LED panels and any constant voltage load in residential, retail and hospitality environments worldwide.

Mean Well
Guaranteed Original Product
44 Items

Data sheet

Barcode
8058774344433
Input voltage
100-240 V
Output voltage
24V DC
Depth in mm
30
Width in mm
97
Length in mm
129
Degree of protection
IP20
Material
Aluminum
Adjustable power
Dimmable
Current carrying capacity
4.5A
Power output in watts
100 w
Efficiency %
90
Compatible voltage
EU-AUD-USA-UK-JAP
