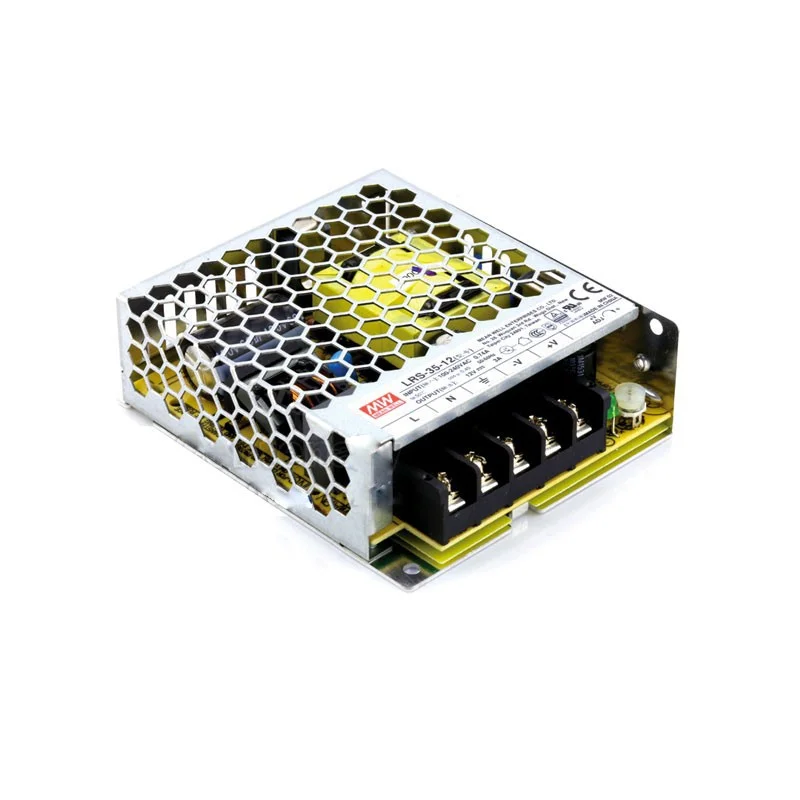

Meanwell LRS-35-12 36W 12V 3A LED Constant Voltage Driver

The Meanwell LRS-35-12 is a constant voltage 12V DC LED driver rated at 36W, engineered to deliver stable and reliable power for LED strips and low-voltage lighting systems. Manufactured by Mean Well, a global leader in industrial power supplies, it combines a compact footprint with high-performance output.

With universal 100-240V AC input voltage compatibility, this power supply is suitable for installations across Europe, USA, Australia, UK and Japan. Its aluminium housing and slim dimensions — 99 x 82 x 35 mm — make it ideal for recessed installations in tight spaces.

Key Technical Specifications

The driver delivers a 12V DC output voltage with a maximum output current of 3A and a nominal output power of 35W. An 89% efficiency rating ensures optimised energy consumption and minimal heat dissipation. The unit operates across a wide temperature range from -30°C to +70°C, supported by 105°C-rated electrolytic capacitors for extended service life. The IP20 protection rating makes it suitable for indoor installations.

Safety and Protections

The LRS-35-12 features a comprehensive protection system including over-voltage, overload, overheating and short-circuit protection, fully compliant with EMC standard EN 55022 Class B and harmonic current regulations EN 61000-3-2.

Applications

The Meanwell LRS-35-12 is the ideal solution for powering 12V LED strips, decorative lighting systems, illuminated signage and architectural lighting projects in both residential and commercial environments.
