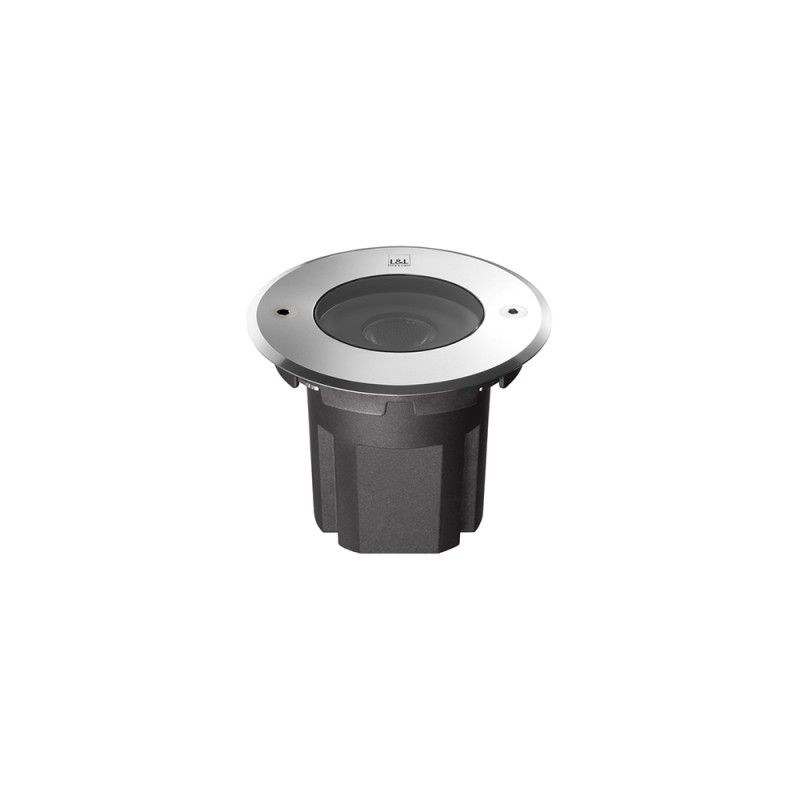

Luce & Light Corso 2.0 recessed round spotlight 8W IP67

Family of IP67 spotlights with integrated power supply, characterized by a dissipating body in thermoconductive technopolymer which guarantees excellent resistance to corrosion, even in saline environments. The AISI 316L stainless steel ring and the screen in transparent tempered extra-clear glass guarantee resistance to knocks and scratches (IK08). Corso is also suitable for vehicles up to 2000Kg, ideal for areas with heavy vehicular traffic. Four sizes available in 2700K, 3000K or 4000K white light, with five optics to choose from.

Installation: Electric wiring facilitated thanks to the possibility of connecting the electric cables directly to the luminaire. Product complete with IP68 connector equipped with integrated IS system. Compatible with H07RN-F cable with minimum section 2x1 and cable Ø min. 7mm max. 12mm. Direct connection between appliance and mains electricity.

Screen material: 10 mm thick transparent extra-clear glass with high transmittance to guarantee chromatic uniformity of the light and tempered for excellent resistance to scratches and knocks.

Gaskets: The annealed silicone gaskets guarantee maximum resistance to UV rays over time and unalterability of the mechanical characteristics.

Protection systems: IPS (Intelligent Protection System) protects the luminaires from water infiltration which can occur in the event of splicing errors between the cables. This innovation provides electrical protection from reverse polarity, hotplugging, ESD, and overvoltages that can occur in the event of electrical system malfunctions; PID (Protective Impendance Device) protects against phenomena of an electrical nature external to the system, in general events with a low energy content.

Operating temperature: -20°C / +45°C

Maximum appliance temperature: 50°C (Ta 25°)

Glow wire test: 960°

Optics: 12°, 36°, 70°, 14°x43°, diffused. Optical system composed of high efficiency TIR lens combined with high quality technical filter. Beam up to 5 meters high.

Warning: Formwork must be purchased to install the product. Sold separately.
