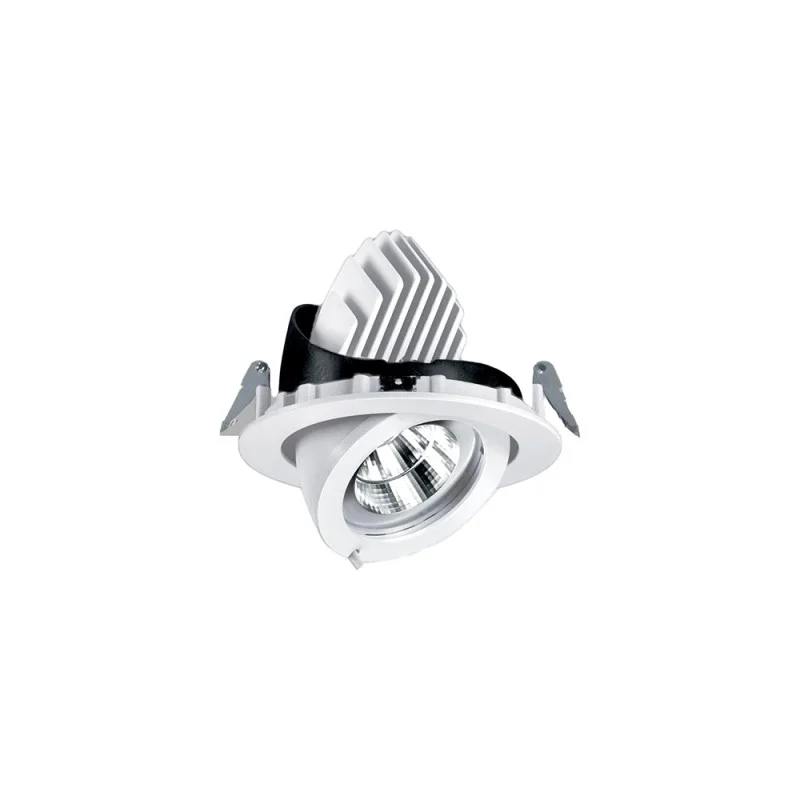

iGuzzini Pixel Led plus 125mm dimmable recessed LED downlight

The iGuzzini Pixel Led Plus 125mm is an adjustable, dimmable recessed LED downlight by iGuzzini, one of the leading names in technical design lighting. The main body and frame are crafted in die-cast aluminium, with steel rotation hinges and a protective carter in high-resistance thermoplastic material. The reflector features high-efficiency optics in superpure aluminium, paired with a transparent tempered safety glass. A passive heat dispersion system ensures long-term reliability and consistent performance over time.

Thanks to its dual adjustability — internal tilt 40°, external 65° and 355° axis rotation — the Pixel Plus 125 offers precise aiming flexibility, making it an ideal solution for living room and office settings, as well as commercial and retail environments where light quality is essential. Available in three beam angles — 18°, 42° and 54° — and two power options (12/13W or 21W), it supports versatile lighting design with colour temperatures of 3000K (warm white) or 4000K (neutral white) and a CRI80 colour rendering index. Dimming is managed via an integrated DALI system, with the dimmable driver supplied. Luminous flux reaches up to 3200 lm in the 21W 4000K configuration. Recessed installation requires a Ø125mm ceiling cutout with steel wire spring fixing; the integrated LED source delivers an average lifespan of 50,000 hours. IP20 rated for indoor use. Available in white.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
