iGuzzini Lun-Up Evo recessed floor floodlight IP67

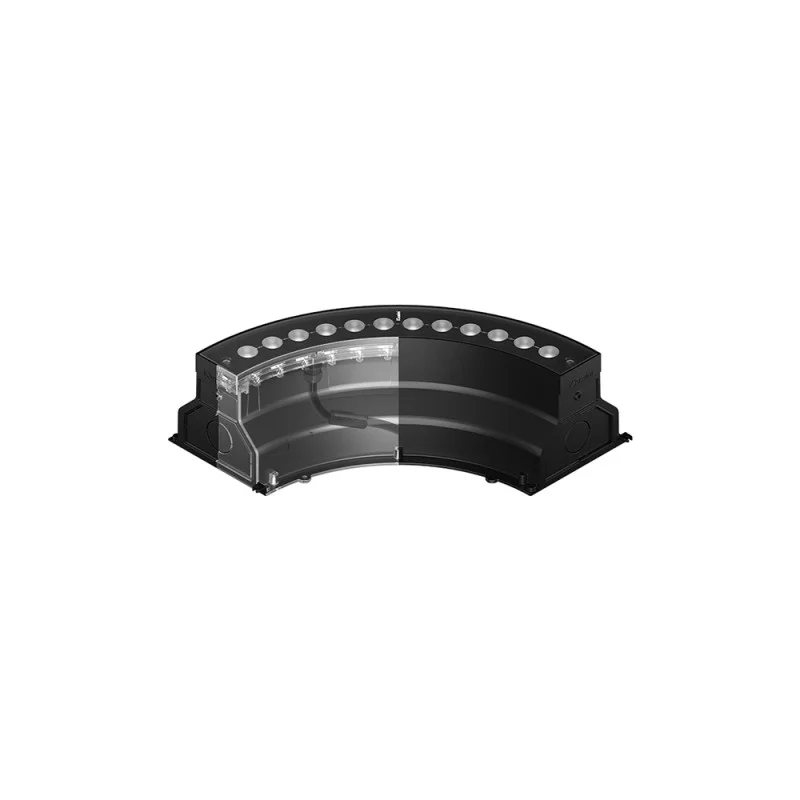

iGuzzini Lun-Up Evo is a recessed floor floodlight IP67 designed by Dean Skira for iGuzzini, conceived to remain virtually invisible within the walking surface. The body is crafted from high-performance PPS (polyphenylene sulfide) thermoplastic in black, with an 8 mm tempered soda-lime glass panel silk-screen printed and siliconed onto a stainless steel plate with self-clinching inserts. Its quarter-circle shape enables modular compositions: individual units can be arranged into semicircles, full circles or undulating linear sequences, creating a grazing light effect that enhances any vertical or horizontal surface.

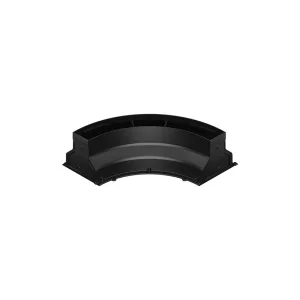

With IP67 protection, IK08 impact resistance and a static load capacity of 2000 kg, this luminaire is ideal for outdoor applications such as urban spaces, gardens, pathways and residential paving. The patented OptiBeam optical system is available in two distributions: Flood 32° delivering 1280 lm and Wide-Flood 48° delivering 1380 lm, in 3000K warm white or 4000K neutral white colour temperature. The 12 integrated LED sources consume just 9.2 W at 24 V DC input voltage, with an average rated life of 100,000 hours and a contact temperature below 40°C. The body and outer casing are ordered separately, as is the power supply. Compatibility with the BLE-DALI interface allows wireless management via Bluetooth Low Energy.

For dimensions, technical specifications and further product information, please refer to the attached PDFs.
