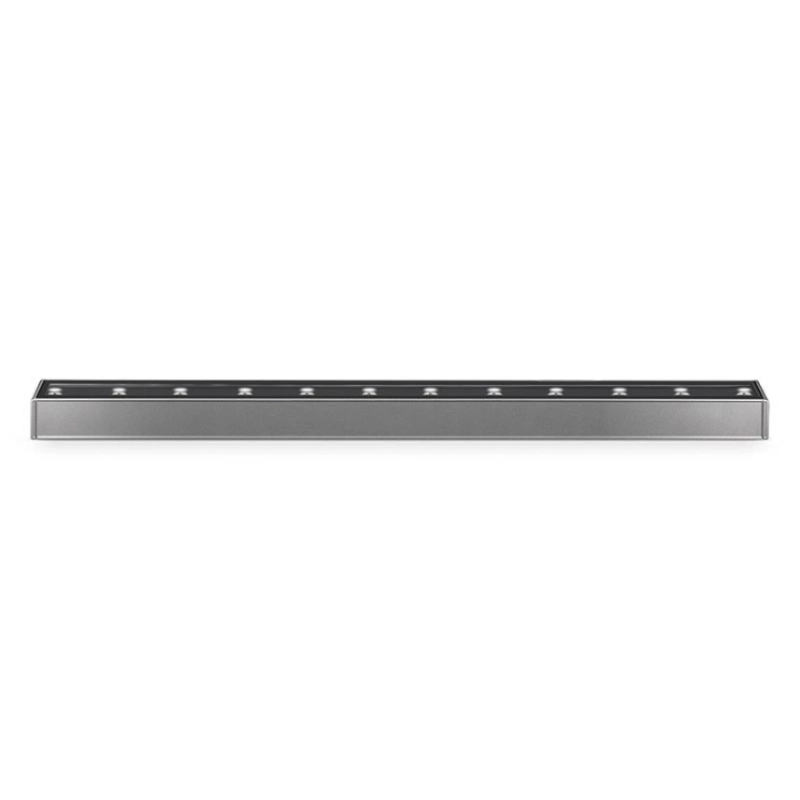

iGuzzini Linealuce Mini37R wall ceiling led bar

Technical specifications

Linealuce Mini37R is an integrated LED bar for outdoor use, with IP66 protection degree. The body is in extruded aluminum with die-cast zamak end caps and silicone gaskets (external screws in stainless steel). The product is supplied with a single PG9 cable gland in nickel-plated brass and an outgoing PVC cable. The gray paint is liquid acrylic with high resistance against atmospheric agents and UV rays. Optical assembly closed at the top by a 3mm thick transparent glass screen fixed with silicone. Complete with power multiled plate in 4000K or 3000K color (power supply not included). Equipped with PMMA diffusing filter and optics with plastic material lens (methacrylate) for Wall Grazing lighting, up to 4 meters in height, making Mini37R a perfect solution for lighting large indoor and outdoor spaces such as architectural and historic buildings, balustrades, walls.

Available in different sizes and powers.

Non-dimmable PWM versions. DALI dimmable versions available on request.

Installation

For installation available as accessories, to be ordered separately: adjustable applique arms in stainless steel and plate for surface-mounted or ceiling-mounted application in anodized aluminum - NOT included.

• Source: LED - integrated
• Drivers NOT included
• NOT dimmable
• Material: Aluminum
• Color temperature: 4000K/3000K
• Luminous flux: 900/1800/2700lm
• Scope: Wall Grazing 4-5 meters
• Usage environment: Indoor/Outdoor
• Degree of protection: IP66
• Generic dimensions: 43x38x37 mm
• Designer: Jean-Michel Wilmotte

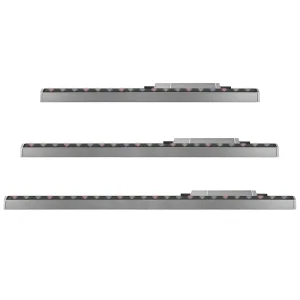

Linealuce Mini 37R small - 528mm, 5.9W

Linealuce Mini37R medium - 1056 mm, 12W

Linealuce Mini37R large - 1585 mm, 18W
