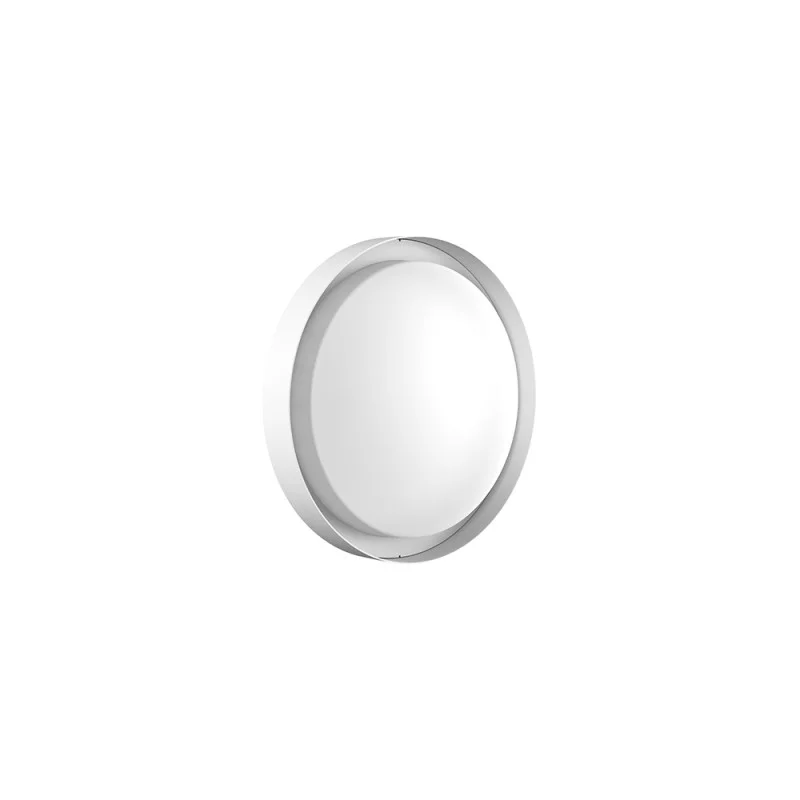

Flos Platter 310 circular wall or ceiling lamp IP66

Platter by Flos Outdoor is a family of lighting fixtures for wall and ceiling installation, characterized by a circular shape available in three dimensions (see Product Family). The diffuser made of opal plastic material guarantees a high uniformity of light emission. The rear fixing plate is made of die-cast aluminum alloy EN AB 47100 (with low copper content), the structure and the heat sink are made of turned aluminium. Finishes with double layer powder coating, subjected to chemical conversion treatment for high resistance to corrosion. Like an orb that radiates light, Platter complements any indoor and outdoor setting with its simple yet functional design.

Platter 310 has an external diameter of 310mm, and is complete with a 18W LED source with integrated 220-240V ON/OFF power supply. Equipped with IP65 cable gland, for 5mm<Ø<10mm rubber cables and a 2-pole quick connection terminal block. To ensure the tightness of the cable gland, it is advisable to use flexible electric cables suitable for use in outdoor environments. Available in 10 different finishes.

• Light source: LED 18W 220-240V (integrated)
• Light temperature: 3000K
• Luminous flux: 1237 lm
• NOT dimmable
• Type of lighting: Symmetrical
• Emission: Direct
• Driver: Included
• For indoor/outdoor: IP66

Dimensions

• Outer diameter: Ø310mm
• Inner diameter: Ø267mm
• Depth: 69mm

On request:

- Light temperature 2700K or 4000K

- Dimmable 1-10V or DALI source
