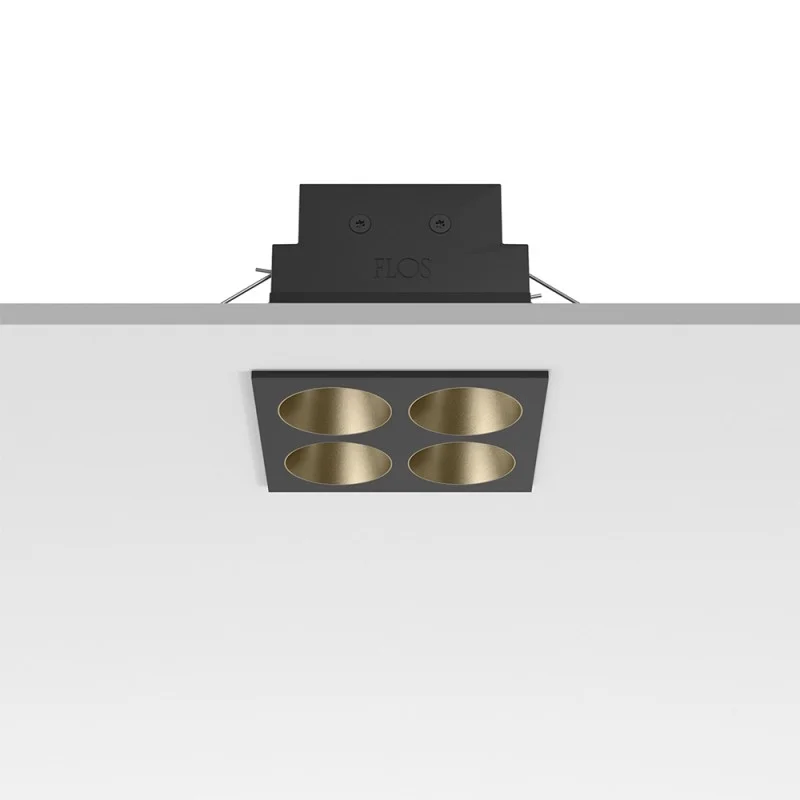

Flos Light Shadow Fixed Trim 4 Square LED DALI 10W 22° Recessed

Description
Product Details

Description

Light Shadow is a revolution in low glare lighting. A patented and unique optical solution that achieves extreme cutting angles, without sacrificing efficiency. Its technology provides a 45-degree cut-off, and maximum integration with architectural elements is combined with a defined and impeccable light beam and total screening, characteristics that allow it to be placed in an almost zenith position without generating glare. Light Shadow is a spotlight with extra compact dimensions that allow recessed integration even in the event of minimum space available.

The Fixed Trim 4 Spots Square model is complete with a dimmable LED module dimmable with DALI technology. It has a power of 10.8W and it is possible to choose the light temperature between 2700K (1080 lm) or 3000K (1140 lm). The lens is fixed with a medium beam of 22°. Remote power is included. It does not require a pre-installation frame.

Light source: LED DC 900mA 10.8W
Integrated LED
Light temperature: 2700K / 3000K
Luminous flux: 1080 lm / 1140 lm
Dimmable - Dali
Driver included
Optic type: Medium 22°
Emission: Direct
For indoor: IP55

Dimensions

Width: 77 x 77 mm
Depth: 61 mm
Recessed hole: 72 x 72 mm

The NON DIMMABLE and Mains Dimming versions are available only on request.

Manufacturer Flos Architectural

Guaranteed Original Product

On order

Data sheet

mpn

05.0612.14.DA

Reference

05.0612.14.DA

Input voltage

100-240 V

Depth in mm

Width in mm

77x77

Degree of protection

IP55

Material

Aluminum

Light source

LED

Adjustable power

with DALI system

Watt power

10 W

Number of light sources

Beam angle

22°

Mounting diameter in mm

72x72

Driver power supply

With driver

Color rendering index

CRI90

Light Emission

Direct

Download

picture_as_pdf Scheda tecnica

Warranty verified 2-year warranty from date of purchase
