Flos C1 Double Spot Wall Large Ø56

Select Color
Select Light color tone
$4,554.92 Save 8%
$4,951.00
The product can be ordered

More buy more save

For 5 products spend per unit
For 10 products spend per unit

C1 Double Spot Wall Large Ø56 - Optic Medium, adjustable double wall spotlight, for indoor use. Available in 5 different finishes. Installation accessories NOT included (see description for details).

Read more ... arrow_drop_down
local_shipping
Shipped in 3-4 working weeksinfo

Quantity

Product accessories
Description

Driver and wall mount are NOT included. They must be ordered separately for correct installation of the appliance.

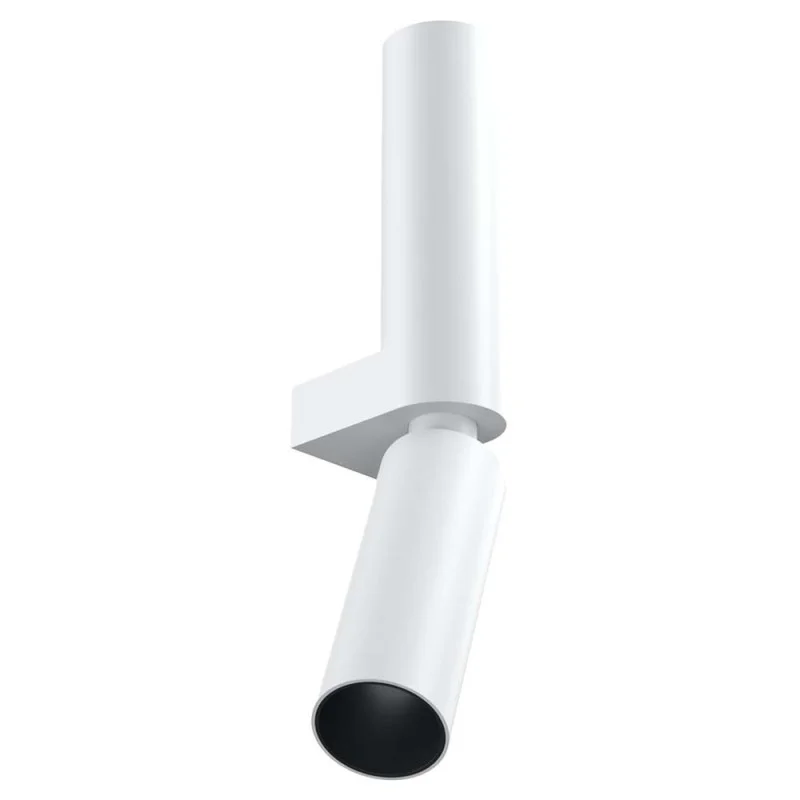

C1 Double Spot Wall Large is an indoor LED spotlight, suitable for wall installation. The lower body of the product can be extracted from the installation surface and oriented 60° on the vertical axis and 180° on the horizontal axis. The simplicity of the cylinder hides an intelligent mechanism that allows to obtain an incredible flexibility of the lighting body. The optical unit set back inside the body hides the light source from view, controlling the direct luminance for a total comfort effect. The upper body of the spotlight projects the light upwards. C1 is suitable for all types of environments both contract (hotels, restaurants, shops, offices) and domestic. The double version includes as an accessory a diffusing screen that can be integrated inside the optical unit to create a soft light effect.

All luminaires must be powered with a remote driver NOT included, available with various control alternatives: 0 / 1-10V, DALI, Push Dimming and Casambi. Control system in broadcast mode. Double emission, direct and indirect, can be controlled independently.

  • Light source: DC LED 950mA - 22W - 2100Lm / 1200mA - 28W - 2600Lm (integrated)
  • Light temperature/Luminous flux: 2700K (1940/2450lm) / 3000K (2100/2600lm)
  • Optic type: Medium - 23°
  • Rotation: 180°
  • Tilt: 60°
  • Type of lighting: Direct (up and down) and Diffuse
  • DIMMABLE (Driver excluded)
  • Power source: Excluded
  • Integrated accessory: Diffusing lens UP

Dimensions

  • Diameter: Ø56 mm
  • Lower part height: 157 mm
  • Upper part height: 192 mm
  • Wall connection: 35 mm

NOTES:

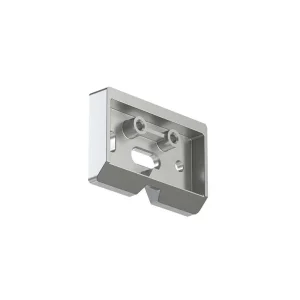

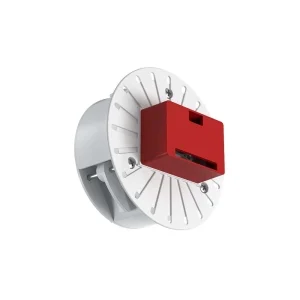

- For SURFACE INSTALLATION it is necessary to order the aluminum support. If you want to install it recessed, instead you need the NO-TRIM FRAME, compatible only with plasterboard surfaces. Both accessories can be ordered separately (see Installation Accessories).

-C1 Mono Spot Ceiling Large is available in the versions with Spot optic (15°), Flood optic (34°) or Wide Flood optic (45°) ON REQUEST.

Flos Architectural
Guaranteed Original Product

Data sheet

mpn
03.1241.DYB
Reference
03.1241.DYB
Input voltage
100-240 V
Diameter in mm
56
Degree of protection
IP20
Material
Aluminum
Light source
LED
Adjustable power
Dimmable
Watt power
28 W
Number of light sources
2
Beam angle
23°
Driver power supply
Without driver
Insulation class
Insulation class III
Mounting
Wall
Total height in mm
349
Input costant current
950mA / 1200mA
Compatible voltage
EU-AUD-USA-UK-JAP
Color rendering index
CRI90
Optics
Adjustable
Light Emission
Diffused and Direct
Download
picture_as_pdf Scheda tecnica picture_as_pdf Download 1
Warranty verified 2-year warranty from date of purchase
Assistance

Do you have a question?

Our team usually replies within 2 business hours.

Hours
Mon-Fri 9:00-13:00
14:30-18:30
Typical reply within 2 hours
Read the FAQ

Fill out the form below. We will reply to you by email as soon as possible.

Question about the product

* Required fields
Claudio 2022-02-28 00:20:49

Buon giorno , Flos C1 Double Spot Wall questo faretto ha già il suo alimentatore incorporato o bisogna acquistarlo a parte se si quale è piu idoneo ..? 2- in generale Esiste un alimentatore tutto in uno già completo di dimmer x rendere dimmerabili striscie a led e faretti..? grazie saluti Claudio

Answer

Salve,

il faretto non include l'alimentatore ed è necessario acquistarlo a parte. Per darle una risposta sull' alimentatore sarebbe necessario conoscere quanti prodotti vuole installare e come vuole installarli .
