Scpower 24V 60W Constant dimmable power supply with phase cut and 0-10v

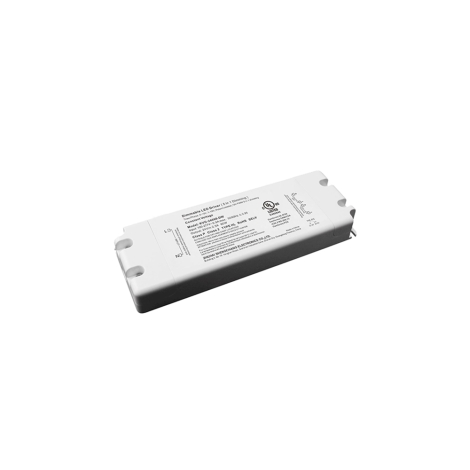

Scpower KVG-D-24V is a dimmable constant voltage 24V 60W LED power supply manufactured by SCPOWER, designed to provide stable and adjustable power for LED strips and low-voltage lighting systems. Built in plastic with a compact footprint of 178×61×24 mm, it delivers a rated current of 2.5A and an output voltage adjustable between 21.5V and 25.5V via an integrated knob. With an input voltage range of 100–240V, it is fully compatible with electrical standards in the EU, USA, UK, Australia and Japan.

An exceptionally versatile and technically refined device, this power supply supports five dimming modes: forward phase cut (MLV), reverse phase cut (ELV, TRIAC), and four 0-10V modes including 0-10V, 1-10V, Potentiometer and 10V PWM, with a full dimming range of 0–100%. The IP20 protection rating confirms suitability for dry indoor installations, while the operating temperature range of ta 40°C to tc 80°C ensures reliable performance. Certifications including CE, RoHS, REAC, SAA and UL attest to compliance with international safety and quality standards.
