Flos infra-structure episode 2 c3 linear and circular module led lamp

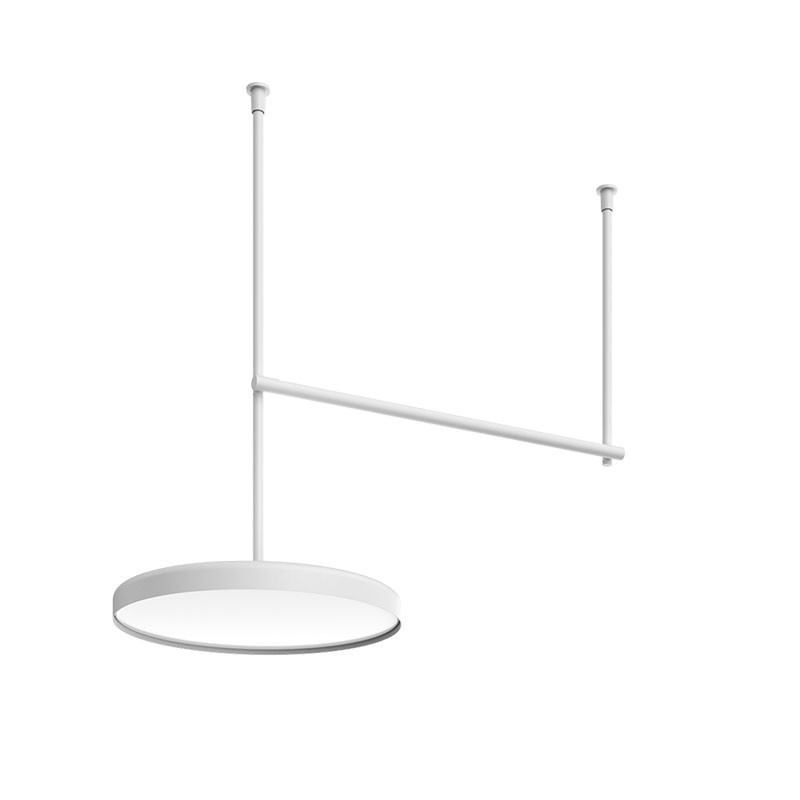

Flos Infra-Structure Episode 2 C3 is a linear and circular LED ceiling module designed by Vincent Van Duysen in 2020 for Flos, offering a refined approach to modular architectural lighting. The structure is crafted from extruded aluminium, available in matt white and black finishes, and combines a 30W linear module with indirect emission and a 40W circular module with direct emission, both featuring a 2700K warm white colour temperature and a CRI90 colour rendering index. The system operates at 48V, with voltage compatibility for EU, AU, USA, UK and JAP, and is fully dimmable via Push, 0-10V, DALI and FLOS Control powered by Casambi.

The modular connection system enables the creation of striking three-dimensional compositions, making this lamp perfectly suited to high-end residential and contract environments such as the living room. High-efficiency opal diffusers ensure uniform upward and downward light distribution with exceptional visual comfort. The mechanical connection between modules is secured by a screw system; overall dimensions are 1200 × 1128 mm with a circular module diameter of 602 mm. The protection rating is IP20, suitable for installation on normally flammable surfaces. The remote 48V power supply is not included.
