Bot Lighting LED module 12-24V waterproof

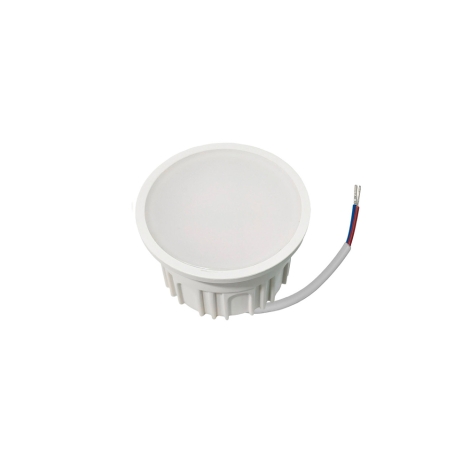

Bot Lighting LED Module 12-24V IP65 is a compact LED module manufactured by Bot Lighting, designed for integration and retrofit applications in luminaires intended for GU10 light sources. Built in PVC, the module measures just 30 mm in height and 50 mm in diameter, allowing installation even inside fixtures with limited internal space. The IP65 protection rating ensures full waterproofing, making it suitable for use in areas exposed to humidity. Power is supplied via low-voltage direct current (12-24V DC), with insulation class III, ensuring safe and reliable system management. The estimated average lifespan of 20,000 hours reflects the high efficiency and longevity of the LED source.

The range is available in four configurations combining colour temperature and beam angle, allowing the most appropriate solution to be selected for each application. Each model delivers a power output of 5.5W and a luminous flux of 600 lumens. The MOD0632DC offers a colour temperature of 2700K with a concentrated 38° beam angle, ideal for accent lighting, display windows and niches. The MOD0633DC features the same 38° angle paired with a slightly more neutral 3000K tone, suited to residential, commercial and hospitality environments requiring precise directional control. The MOD0652DC combines 2700K with a wide 100° beam angle for soft, diffused light distribution, while the MOD0653DC, also at 100°, provides a 3000K colour temperature for uniform and versatile illumination. These modules adapt effectively to ceiling lights, wall lights, bathrooms, corridors and utility areas, making them a flexible solution for both residential and commercial installations. A power supply compatible with the module's electrical specifications is required for correct operation.
