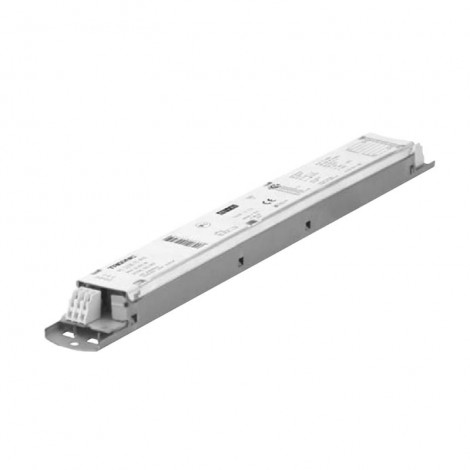

Tridonic PC 4x14 T5 PRO ip Electronic ballast Fluorescent lamps

$ 24.24 tax incl.

22088978
9006210220550
Lighting
New product

Electronic ballast for T5 fluorescent tubes 4X14W of power.

Immediate shipment
20 Products in wharehouse

Availability information

Calcola costi spedizione
Download :

Data_sheet_22088978

Download (245.04k)
Features :
In short :

Electronic ballast for T5 fluorescent tubes 4X14W of power.

Description :

• defined lamp warm start is 1.5 s
• constant light output independent of
fluctuations in mains voltage
• average service life = 50,000 h
(at ta max. with a failure rate 0.2%
per 1000 operating hours)
• AC voltage range 198–264 V
• DC voltage range 176–280 V,
(lamp start 198 V DC)
• overvoltage protection 320 V AC, 1 h
• overvoltage indication starting at input
voltage 306 V AC
• undervoltage protection (shut down)
< 150 V AC / 176 V DC
• operating frequency 42 kHz
• suitable for automatic and manual wiring with
insulation displacement connector (IDC)
• wide operating temperature range from
-25 °C to +60 °C
• suitable for use in emergency lighting
installations in accordance with VDE 0108
• safe switch off of defective lamps
• automatic re-start after lamp change
• for luminaires with or and
in acc. with EN 60598 / VDE 0710 and VDE 0711
• protection class SK I and SK II
• IP 20
• thermal protection according to
EN 61347-2-3 C5e


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage220/240 V 50/60 Hz
Depth in mm21
Width in mm30
Length in mm360
Degree of protectionIP20
MaterialSteel
Average hours duration50000
Adjustable powerNot dimmable
Product ColorWHITE COLOR
Variant22088978
Number of light sources2
Weight in Kg0.26
Bulb power4x14W
SystemElectronic
