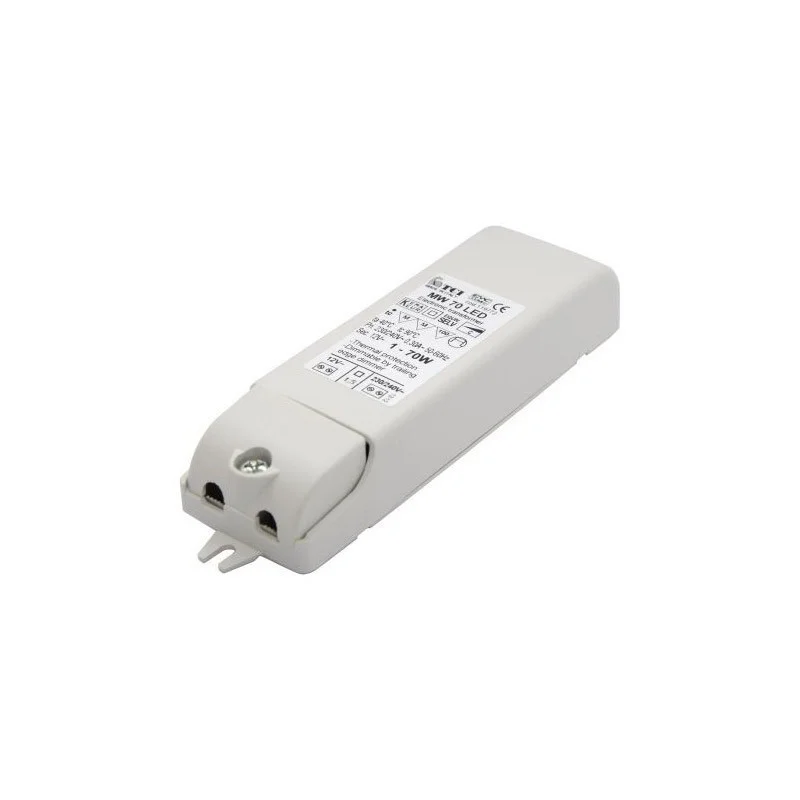

TCI MW 70 Dimmable TRAILING EDGE 12 V electronic transformer for LED bulbs and halogen lamps

$ 23.12 tax incl.

$ 33.03 tax incl.

30%

119772
8010703460515
TCI
New product

Dimmable electronic transformer with 12 V with possibility of being regulated with IGBT for LED or halogen lamps.

Immediate shipment
14 Products in wharehouse

Availability information

Calcola costi spedizione
Download :

Data_sheet_119772

Download (853.93k)
Features :
In short :

Dimmable electronic transformer with 12 V with possibility of being regulated with IGBT for LED or halogen lamps.

Description :

Features

• IP20 independent transformer for lamps 12 Vac:

1 ÷ 70 W halogen lamps;

1 ÷ 50 W LED lamps.

• Class II protection against electric shock for direct or indirect

contact.

• Complete with terminal cover and cable retainer.

• Input and output terminal blocks on the same side

(wire cross-section up to 0,5 - 2,5 mm2).

• Clamping screws on primary and secondary circuits for cables

with diameter: min. 3 mm - max. 6 mm.

• Max. 18 mm cable peel-off.

• The transformer can be secured with slot for screws.

•Ultra compact size.

• Protections:

- against overheating and short circuits.

- against mains voltage spikes.

- against overloads.


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage220/240 V 50/60 Hz
Output voltage12 VOLT AC
Depth in mm21
Width in mm34
Length in mm107
Degree of protectionIP20
MaterialPvc
Adjustable powerDimmable
Product ColorWHITE COLOR
Weight in Kg0.80
Power output in watts70 w
Insulation class Insulation class II
