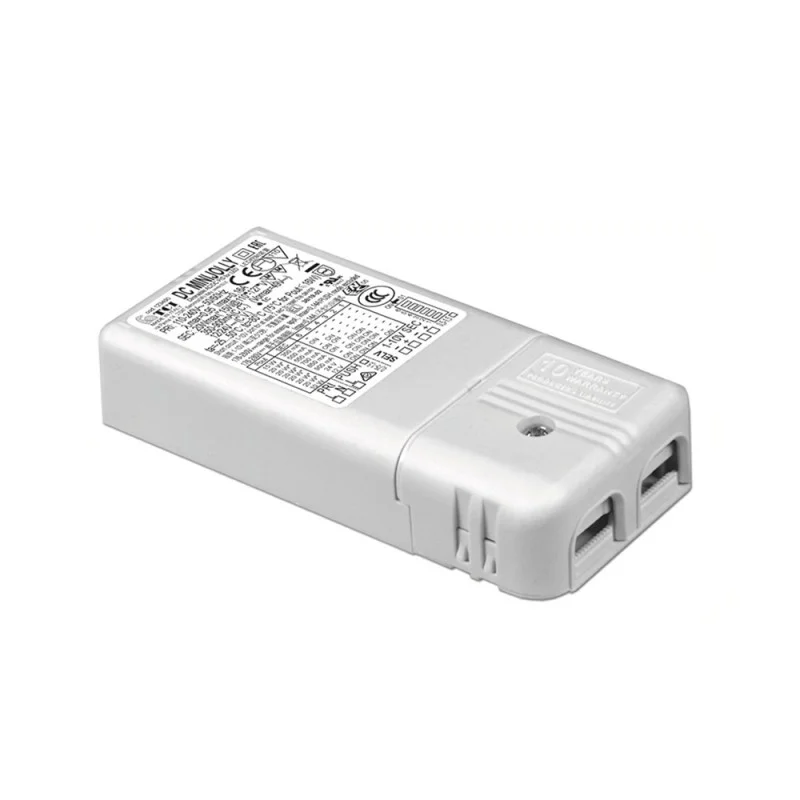

TCI LED Driver 110-240V DC MINI JOLLY 20 1-10V e PUSH Dimmable Dimmer

$ 38.59 tax incl.

$ 64.32 tax incl.

40%

123400
8010703369887
TCI
New product
Electronic power supply adjustable in direct current with DIP-SWITCH. Multipower supply equipped with dip-switch with the selection of the output current. IP20 independent power supply, for indoor use. Possibility to adjust the light intensity through the 1-10V and PUSH system. Nominal voltage 110-127V or 220-240V. Dimensions 110x52x23 mm

Immediate shipment
21 Products in wharehouse

Availability information

Calcola costi spedizione
Download :

Data_Sheet_123400

Download (756.74k)
Features :
In short :
Electronic power supply adjustable in direct current with DIP-SWITCH. Multipower supply equipped with dip-switch with the selection of the output current. IP20 independent power supply, for indoor use. Possibility to adjust the light intensity through the 1-10V and PUSH system. Nominal voltage 110-127V or 220-240V. Dimensions 110x52x23 mm
Description :

Nominal voltage 110-127V and 220-240V
Dimensions 110x52x23 mm

Features

• Multipower driver supplied with dip-switch for the selection of the output current.
• IP20 independent driver, for indoor use
• Class II protection against electric shock for direct or indirect contact.
• It can be used for lighting equipment in protection class I and II.
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: PRI 5-8 mm / SEC 3-5 mm.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
• Double output impedance for use in household electrical appliances.

Dip-switc selection of the constant output current Variants:

15W (15) 43V max. 350 mA cost.

20W (15) 40V max. 500 mA cost.

20W (15) 36V max. 550 mA cost.

20W (15) 29V max. 700 mA cost.

20W (15) 24V max. 850 mA cost.

20W (15) 22V max. 900 mA cost.


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage100-240 V
Depth in mm23
Width in mm52
Length in mm110
Degree of protectionIP20
Adjustable powerWith DALI & Push system
Constant current output350~900mA
Power output in watts20 w
Insulation class Insulation class II
USA JAP compatibleCompatible
