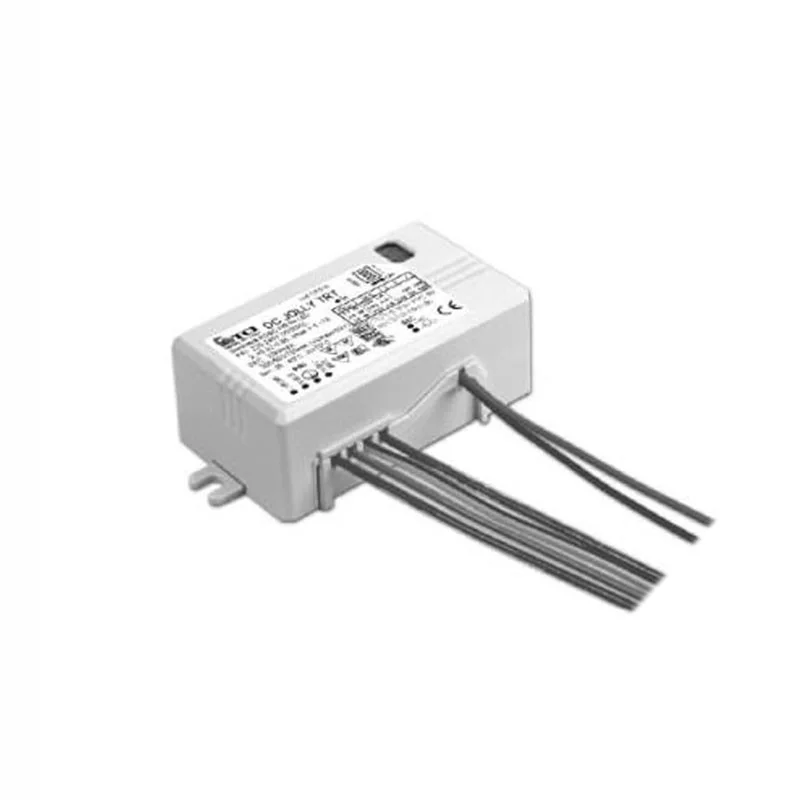

TCI JOLLY TRT 32 PUSH Electronic Driver LED DC 220-240V 32W 350-700mA Dimmable DIP-SWITCH

$ 65.84 tax incl.

$ 94.05 tax incl.

30%

127016
8053288362485
TCI
New product

Multipower electronic LED driver PUSH dimmable DC

Immediate shipment
5 Products in wharehouse

Availability information

Calcola costi spedizione
Download :

Features :
In short :

Multipower electronic LED driver PUSH dimmable DC

Description :

Multi-power supply with dip-switch for selecting output current. Stand-by consumption less than 0.25 W. Power supply to be incorporated. Can be used for luminaires in protection class I. Supplied with cables on primary and secondary for connection. PFC active. Regulated current + -6% including temperature variation. Protections: thermal and short circuit, against extra mains voltage, against overloads. Thermal protection C.5.a. Rated input voltage 220-240V

Pout 17W Vout 20..50 Iout DC 350 mA

Pout 20W Vout 20..50 Iout DC 400 mA

Pout 22W Vout 20..50 Iout DC 450 mA

Pout 24W Vout 10..50 Iout DC 500 mA

Pout 26W Vout 10..50 Iout DC 550 mA

Pout 28W Vout 2..47 Iout DC 600 mA

Pout 30W Vout 2..47 Iout DC 650 mA

Pout 32W Vout 2..47 Iout DC 700 mA


Assistance :

Need help ?

Contact us now
Frequently asked
Shipping and price

About availability :

-> PRODUCT WITH QUANTITIES INDICATED -> Products are available in our warehouse and are ready for delivery.

-> NO LONGER IN STOCK -> Product is in out of production or no longer available from the supplier .

-> AVAILABLE ON ORDERING -> The products will be ordered from the supplier and if not indicated the waiting times vary from 5 to 15 days

Can't find your answers or information? For international customers there is an available phone number for your questions: +390541657672 , phone operating from 8.30am - 6.30pm monday - friday.

x

Input voltage220/240 V 50/60 Hz
Depth in mm27
Width in mm40
Length in mm78
Degree of protectionIP20
MaterialPvc
Adjustable powerDimmable
Constant current output350-500-700 mA
Power output in watts32w
Insulation class Insulation class II
Country of originItaly
